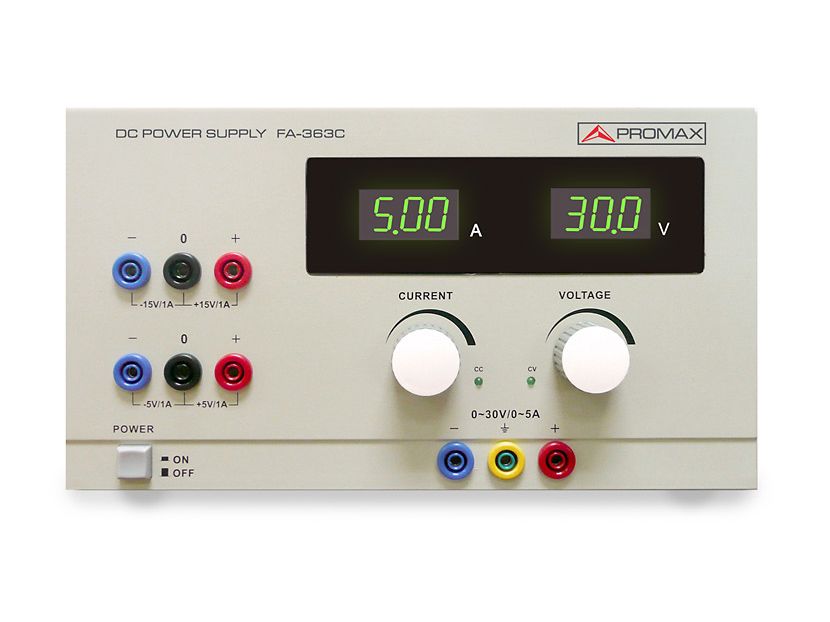

Promax FA-363C 多输出电源(30V / 5A,固定输出±5V和±15V)

  • 制造商: Promax
    Model: FA-363C
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

- Variable output:

Voltage: 0 to 30 V

Current: 0 to 5 A

- Line Regulation:

CV 1x10-4 + 3 mV

CC 2x10-3 + 3 mA

- Load Regulation:

CV 1x10-4 + 4 mV

CC 2x10-3 + 5 mA

- Ripple and Noise CV:

1 mV rms

CC 3 mA rms

Fixed Output 1:

- Voltage: ± 15 V

- Current: 1 A max.

- Line Regulation: 1 %

- Load Regulation: 1 %

- Ripple and Noise: 5 mV rms

Fixed Output 2

- Voltage: ± 5 V

- Current: 1 A max

- Line Regulation: 1 %

- Load Regulation: 1 %

- Ripple and Noise: 5 mV rms

Display Accuracy

- Voltage: ± (0.2 % Rgd + 2 digits)

- Current: ± (1.0 % Rgd + 2 digits)

Power Supply

- Mains voltage: 110 ~ 127 V AC ± 10%

- 220 ~ 240 V: AC ± 10% (commutable)

Dimensions: 260 (W.) x 160 (H.) x 340 (D.) mm

Weight: 8 kg
