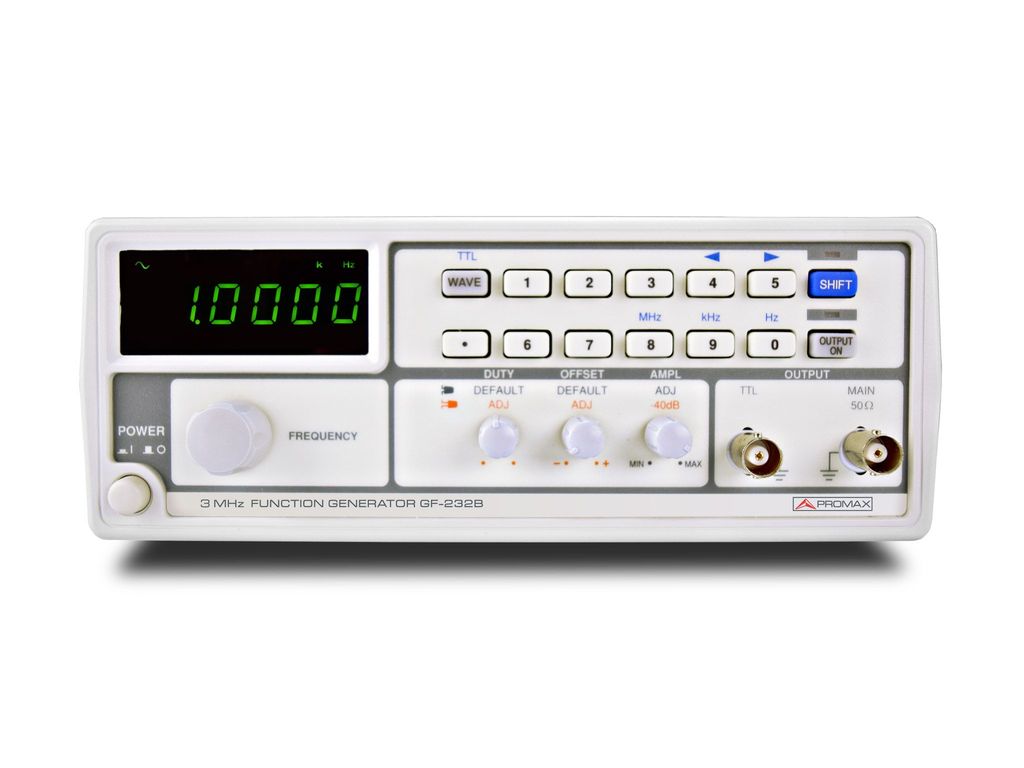

Promax GF-232B 3 MHz 函数发生器

Output Waveforms: Sine, Square, Triangle

Waveform Range

Sine / Square: From 0.1 Hz to 3 MHz

Triangle: From 0.1 Hz to 1 MHz

Resolution: 0.1 Hz maximum

Amplitude Range: 10 Vpp (50 Ω load)

Attenuator: -40 dB ±10 %

DC Offset: From < -5 V to > +5 V (50 Ω load)

Duty Range: From 25 % to 75 %, ≤ 1 MHz (Square Wave)

Display: 6 digits LED display

Dimensions: 251 (W.) × 91 (H.) × 291 (D.) mm

Weight: Approx 2.1 kg
