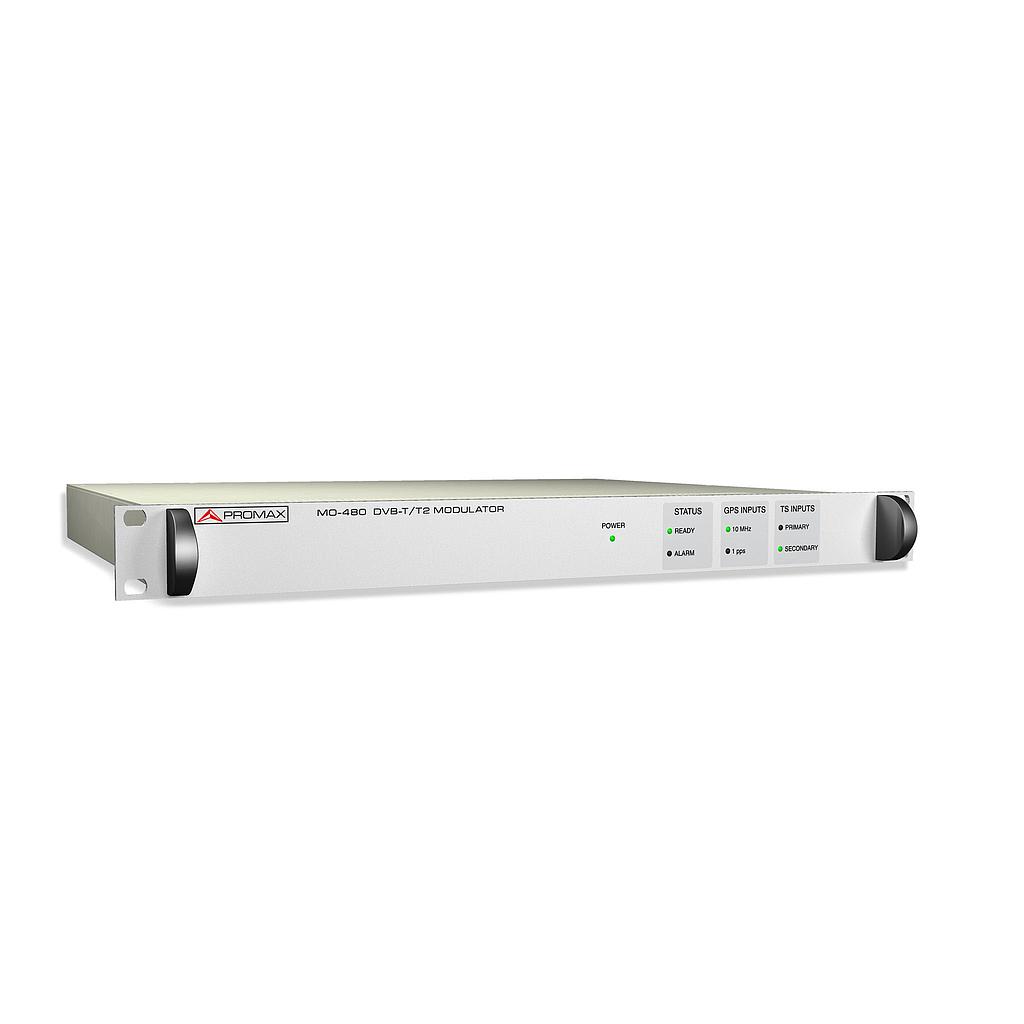

Promax MO-481 广播调制器DVB-T / T2 MFN / SFN (OEM format)

Signal predistortion

Crest Factor Reduction: Enable/Disable

Range: 8 to 11 dB

Resolution: 0.1 dB

Non linear: predistortion Enable/Disable

Number of points: From 2 to 16. Linear interpolation

Table AM-AM: Input Amplitude: -12 dB to +12 dB / Output Amplitude: -6 dB to +6 dB

Table AM-PM: Input Amplitude: -12 dB to +12 dB / Output Phase: -30° to +30°

AM Resolution: 0.1 dB

PM Resolution: 0.1º

Linear predistortion: Enable/Disable

Number of points: 72. Linear interpolation

Amplitude Correction: From -6 dB to +6 dB

Group Delay Correction: From -1500 to +1500 ns

Amplitude Resolution: 0.01 dB

Group Delay Resolution: 1 ns

Power supply:  12 V DC 1.8 A

Dimensions: 116 (W.) x 61 (H..) x 258 (D.) mm

Weight: 1. 57 kg
