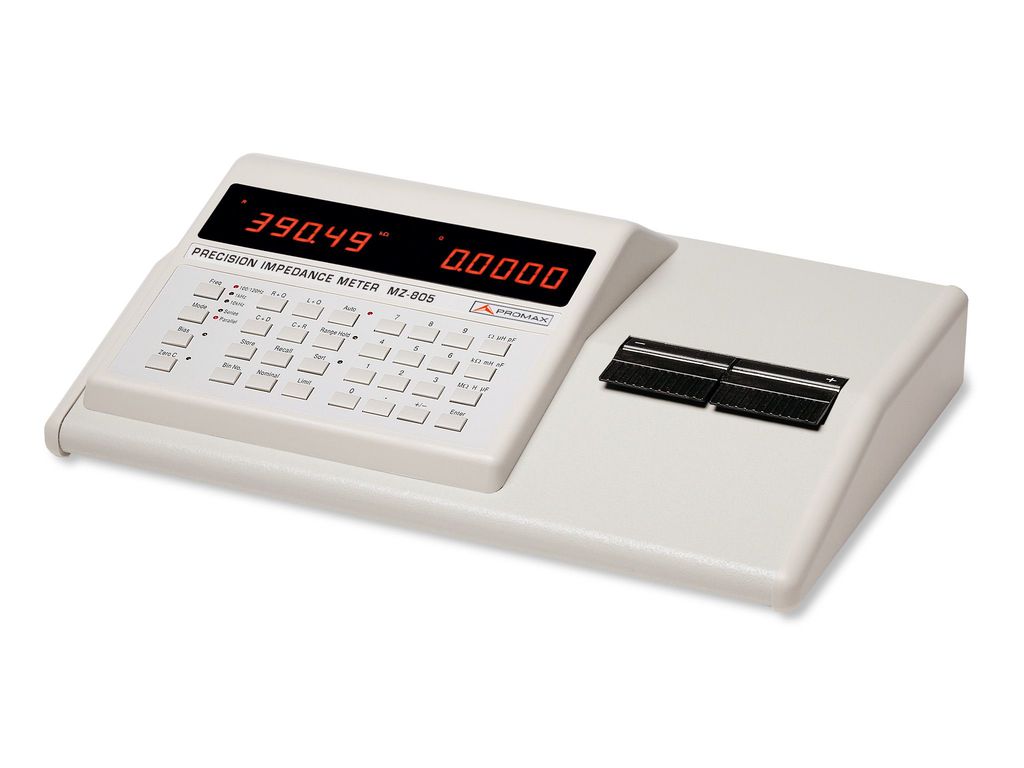

Promax MZ-805 台式LCR表

  • 制造商: Promax
    Model: MZ-805
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Functions

Parameters measured: R, L, C, D and Q.

Measurement modes: Series or parallel equivalent circuit

Measurement functions: Fully auto ranging including selection between L, C and R

 The Zero C function nulls out up to 100pF of stray capacitance in the test fixture

Measurement frequency: User selectable to be 100Hz, 1kHz or 10kHz; frequency accuracy ± 0.01%

120Hz instead of 100Hz by factory option for 60Hz operation

Measurement Ranges and Resolution Parameter Range:

R: 0.1 mΩ-990 MΩ

L: 0.001 µH-9900 H

C: 0.001 pF-99000 µF

D: 0.001-999

Q: 0.001-999

Display Type: Dual 5-digit 0.56" LEDs with range and function indication

              Maximum display count 50,000

Alimentation: 220V-240V AC or 110V-120V AC ±10% 50/60Hz, adjustable internally; 25VA max.

Size 365 x 240 x 95 mm, including feet

Weight 2.9 kg

Included accessories:  Axial components adapter, Mains cord
