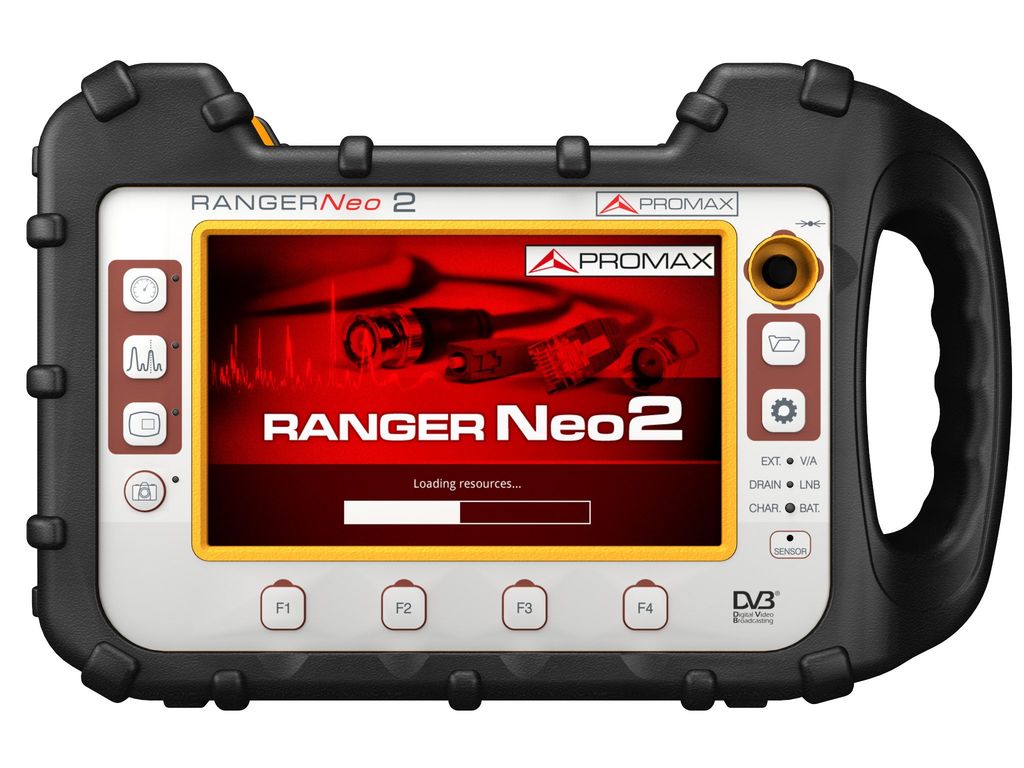

Promax RANGERNeo 2 广播电视信号测试分析仪



                           QAM Annex B


                           DVB-S, DVB-S2, DVB-S2 multistream


                           DSS, ACM/VCM/CCM


AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:- Universal RF input 75 Ω

                   - HDMI output

                   - IP input for remote control

                   - Analogue Video/Audio input

                    - 2xUSB (Type-A) for data transfering

FUNCTIONS:Merogram and Spectrogram

                    Constellation diagram LTE

                   Dynamic echoes analysis

                   Audio/Video streaming

                   SCAN + TILT

                   StealthID (instant identification of tuning parameters)

                   PLS (Physical Layer Scrambling)

                  Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold

                 4K Frame grabber

                 FM RDS radio measurements and decoding

                 Screenshots and Datalogger for measurement reports

                 Wideband LNB

                 WiFi 2.4 GHz


                Service Recording

                DVB-S2 multistream

                Signal monitoring

                Field strength

               Task planner

               TS Recording

               TS Analysis


               IPTV multicast

               Shoulder Attenuation

              Beacon-Flyaways SNG and VSAT

              GPS Coverage Analysis (optional


Frequency Margin: From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range Span : From 10 - 130 dBµV

                         Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:2 kHz (terrestrial)

                      10, 20, 30, 40, 100, 200 kHz

                      1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

                :  From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots


GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

        DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

        dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY: > 4h(smart battery)

HARD CASE: Included


DAB, DAB+: Available

GPS Coverage Analysis: Available

Advanced DAB/DAB+ analyzer: Available

Advanced FM radio analyzer: Available

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
