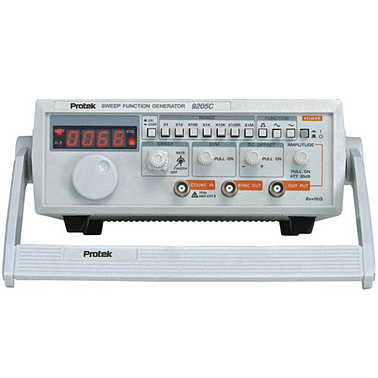

Protek 9205C 扫频功能发生器,带频率计数器 (0.02 Hz ~ 2 MHz)
制造商: PROTEK Model: 9205C - 报价要求
- 联系
Specification | ||
Output | Frequency Range | 0.02 Hz to 2 MHz (7 Ranges) |
Accuracy | ±5%Hz of Full Scale to 200K Hz, ±8% of Full Scale from 200KHz to 2 MHz | |
Amplitude | 01Vp-p in 50Ω Load | |
Attenuation | Fixed 20dB ±1dB Continuity Variable | |
Impedance | 50Ω ±5% | |
Sine Wave | Flatness | ±3dB ~ 3 MHz |
Distortion | 2% (10Hz ~ 100KHz) | |
Square Wave | Rise/Fall Time | 100ns or Less |
Triangle Wave | Linearity | 99% or More ~ 100KHz |
Symmetry Variation | 1:1 ~ 4:1 | |
VCF Input | 0 ~ 10V DC | |
Sweep Function | Mode | Linear |
Width | 1:1 ~ 100:1 | |
Time | 20ms ~ 2s | |
Frequency Counter |
Range | 10Hz ~ 2MHz |
Accuracy | 0.01% ± 1 Count | |
Max. Input Voltage | 70Vp-p | |
Input Impedance | 1MΩ | |
General | Power | 100/120/220/230V AC ±10%, 50/60Hz |
Dimension (W x D x H) | 250 x 267 x 76mm | |
Weight | Approx 2.5Kg |
Specification | ||
Output | Frequency Range | 0.02 Hz to 2 MHz (7 Ranges) |
Accuracy | ±5%Hz of Full Scale to 200K Hz, ±8% of Full Scale from 200KHz to 2 MHz | |
Amplitude | 01Vp-p in 50Ω Load | |
Attenuation | Fixed 20dB ±1dB Continuity Variable | |
Impedance | 50Ω ±5% | |
Sine Wave | Flatness | ±3dB ~ 3 MHz |
Distortion | 2% (10Hz ~ 100KHz) | |
Square Wave | Rise/Fall Time | 100ns or Less |
Triangle Wave | Linearity | 99% or More ~ 100KHz |
Symmetry Variation | 1:1 ~ 4:1 | |
VCF Input | 0 ~ 10V DC | |
Sweep Function | Mode | Linear |
Width | 1:1 ~ 100:1 | |
Time | 20ms ~ 2s | |
Frequency Counter |
Range | 10Hz ~ 2MHz |
Accuracy | 0.01% ± 1 Count | |
Max. Input Voltage | 70Vp-p | |
Input Impedance | 1MΩ | |
General | Power | 100/120/220/230V AC ±10%, 50/60Hz |
Dimension (W x D x H) | 250 x 267 x 76mm | |
Weight | Approx 2.5Kg |
