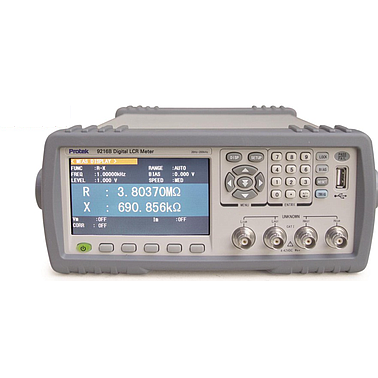

Protek 9216B LCR测试仪(200kHz,0.05%)

  • 制造商: PROTEK
    Model: 9216B
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Basic measurement
Accuracy (See details
In technical specification)
LCRZ 0.05%
DCR 0.1%
Calibration
condition
Warm up time : ≥30minutes ;
Environment temperature : 23±5℃
Signal Level : 1Vrms ;
Correction: after OPEN, SHORT
Testing cable length : 0m
Test signal Frequency 20Hz ~ 200kHz
Signal source output impedance Selectable 30Ω, 100Ω, ±1% @1kHz
AC test signal level
Normal
10mV~ 2Vrms
Resolution : 10mV
Accuracy : 10% x Setting voltage+2mV
100µA~ 20mArms / Resolution : 0.1mA
Constant level
(ALC ON)
20mA~ 1Vrms
Resolution : 10mV / Accuracy 10%
200µA~ 10mArms / Resolution : 0.1mA
DCR test signal level 50mV~ 2V DC / Resolution : 0.5mV
DC Bias voltage source
0V~ ±5V
Resolution : 0.5mV / Accuracy 1%
0mA~ ±50mA
Resolution : 0.5µA
Test parameters lZl, lYl, C, L, X, B, R, G, D, Q, θ, DCR
DCR Display range 0.00001 Ω~ 99.9999 MΩ
LCR Parameters display Range
lZl, R, X 0.00001Ω ~ 99.9999Ω
lYl, G, B 0.00001µs ~ 99.9999s
C 0.00001pF ~ 9.99999F
L 0.00001µH ~ 99.9999Kh
D 0.00001 ~ 9.99999
Q 0.00001 ~ 99999.9
θ(DEG) -179.999° ~ 179.999°
θ(RAD) -3.14159 ~ 3.14159Ω
Δ% -999.999% ~ 999.999%
Display Digits 6 digits
Measurement time (≥10kHz)
Fast : 75meas/sec(13ms), Medium : 11meas/sec(90ms)
,Slow : 2.7meas/sec(370ms)
Equivalent circuit Serial, Parallel
Range mode Auto, Hold
Trigger mode Internal, Manual, External, Bus
Average time 1-255
Correction Open, Short, Load
Math operation Direct reading, ΔABS, Δ%Trigger delay time setting 0 ~ 60.000s 1ms steps
Step delay time setting 0 ~ 60.000s 1ms steps
List Sweep
- 10 points list sweep
- Frequency, AC voltage/current, internal/external
bias voltage/current can be swept.
- Each sweep point can be sorted separately
Comparator function
10 bins, BIN1-BING9, NG, AUX
Bin count function
PASS, FAIL LED Display on front panel
Built-in Storage
Internal 100 LCRZ instrument setting files,
201 times test results
USB Storage
Instrument setting files, measurement result CSV f
Iles, printed screen (GIF format)
Interface
Control interface HANDLER
Communication interface USB HOST, RS-232C, RS485(optional),GPIB(optional)
Storage interface USB DEVICE ( U-Disk storage )
Dimension 235mm(W) * 105mm(H) * 360mm(D)
Net weight 3.6 kg
Standard Accessories
TEST FIXTURE, Power cable, Fuse(1), Manual
Certificate Sheet

Details

Download datasheet
