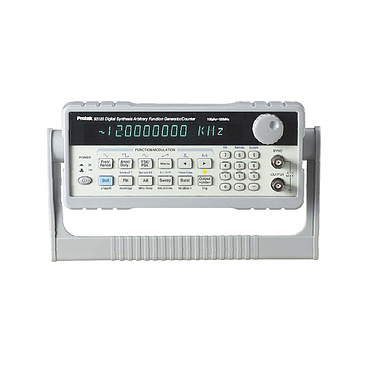

The Protek 9305, 9310, 9320, 9340, 9380 and 93120 is a precise test instrument that designed by Direct Digital Synthesis System and can output standard waveforms (sine, square, triangle, ramp & pulse) and Arbitrary Waveform. These Models are used to output function signals and AM, FM, FSK, PSK, Sweep and Burst, Frequency Sweep Signal.
|
| Spec |
9305 |
9310 |
9320 |
9340 |
9380 |
93120 |
| Waveform |
Frequency Range |
Main Waveform |
100µHz - 5MHz |
100µHz - 10MHz |
100µHz - 20MHz |
100µHz - 40MHz |
100µHz - 80MHz |
100µHz - 120MHz |
| Stored Waveform |
100µHz~100kHz |
| Resolution |
1µHz |
| Accuracy |
5 0.000001 |
| Stability |
1 0.000001 |
| Frequency |
Main Waveform |
Sine, Square, TTL |
| Level Resolution |
12Bits |
| Sampling Rate |
200MS/s |
| Sine Waveform Distortion Harmonic |
-50dBc(Freq ≤ 5MHz), -45dBc(Freq ≤ 10MHz), -40dBc(Freq ≤ 20MHz), -35dBc(Freq ≤ 40MHz) |
| Sine Waveform Distortion |
0.1% (20MHz~100kHz) |
| Square Waveform Rising/Falling Time |
Less than 25ns |
Less than 15ns |
| Stored Waveform |
Waveforms |
27 Waveforms (Sine, Square, Triangle, Up-lamp, Down-lamp, Noise, Pulse, P-pulse, N-pulse, P-dc, N-dc, Stair, c-pulse, Commut-fu, Commut-hr, Sine-tra, Sine-ver, Sine-pm, Log, Exp, Round-har, sin%, Squ-root, Angent, Cardio, Quake, Combin) |
| Waveform Length |
4096Dots |
| Amplitude Resolution |
10Bits |
| Duty Factor of Pulse Wave |
0.1% ~ 99.9% (Less than 10kHz), 1% ~ 99% (10kHz ~ 100kHz) |
| Amplitude |
Amplitude Range |
2mV ~ 20Vp-p(High Impedance), 1mV ~ 10Vp-p(50Ω) |
| Max. Resolution |
2µVp-p(High Impedance), 1µVp-p(50Ω) |
| Amplitude Accuracy (at 1kHz) |
(1%+0.2mV) |
| Amplitude Stability |
5% / 3hours |
| Flatness |
Amplitude ≤ 2V |
3% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 40MHz) |
| Amplitude > 2V |
5% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 20MHz), 20% (5MHz < Freq ≤ 20MHz) |
| Output Impedance |
50Ω |
| Offset |
Offset Range |
10V(High Impedance), 5V(50Ω) |
| Resolution |
2µV(High Impedance), 1µV(50Ω) |
| Error |
1%+10mV |
| AM |
Carrier Waveform |
Sine, Square |
| Modulation Mode |
INT, EXT |
| Modulation Signal |
Waveform |
Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency |
10µHz ~ 20kHz |
| Relative Modulation Error |
(5%+0.2)100µHz < Freq ≤ 10kHz, (10%+0.5)(10kHz < Freq ≤ 20kHz) |
| Modulation Depth |
1%~120% |
| Amplitude of External Input Signal |
3Vpp (+1.5V~-1.5V) |
| FM |
Carrier Waveform |
Sine, Square |
| Modulation Mode |
INT, EXT |
| Modulation Signal |
Waveform |
Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency |
100µHz~10kHz |
| Frequency Offset |
Max, 50% of Carrier Frequency for Internal FM; Max, 10% of Carrier Frequency of External FM; Input Signal Voltage 3Vp-p (+1.5V~-1.5V) |
| FSK Modulation |
Input Signal |
Either Frequency 1 or Frequency 2 |
| Control Mode |
INT, EXT (TTL Level, Low Level F1, High Level F2) |
| Alternation Rate |
0.1ms ~ 800s |
| PM |
Waveform |
Sine, Square |
| PSK Modulation |
PSK |
Phase 1 (P1), Phase 2 (P2) |
| Range |
0.1° ~ 360.0° |
| Resolution |
0.1° |
| Alternation Time Interval |
0.1ms ~ 800s |
| Control Mode |
INT, EXT (TTL Level, Low Level P1, High Level P2) |
| Burst |
Waveform |
Sine, Square |
| Burst Counting |
1~10000 Period |
| Alternation Time Interval |
0.1ms ~ 800s |
| Control Mode |
INT, EXT |
| Sweep |
Waveform |
Sine, Square |
| Time |
1ms~800s (linear), 100ms~800s(log) |
| Mode |
Linear, Log |
| External Trigger Signal Frequency |
DC ~ 1kHz(linear), DC ~ 10kHz(log) |
| Control Mode |
INT, EXT |
| Output of Modulation Signal |
Waveform |
Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency |
100µHz ~ 20kHz |
| Amplitude |
5Vpp 2% |
| Output Impedance |
620Ω |
| Storage |
Storage Parameter |
Single Frequency, Amplitude, Waveform, DC Offset Values and Function State |
| Storage Capacity |
10 Signal |
| Frequency Measurement |
| Frequency Range |
1Hz ~ 100 MHz |
| Min. Input Voltage |
ATT Open |
50mV (Freq 10Hz ~ 50MHz), 100mV (Freq 1Hz ~ 100 MHz) |
| ATT Close |
0.5V (Freq 10Hz ~ 50MHz), 1V (Freq 1Hz ~ 100 MHz) |
| Max. Input Voltage |
100Vpp (Freq ≤ 100kHz), 20Vpp (1Hz ~ 100 MHz) |
| Low Pass Filter |
|
Cut off Frequency about 100kHz |
| With Internal Attenuation |
≤ -3dB |
| With External Attenuation |
≥ -3dB (Freq > 1MHz) |
| Gate Time |
10ms ~ 10s |
| Operation Characteristics |
| Power |
220V 10%, 50~60Hz, Max, 35W |
| Temperature/Humidity |
0°C ~ 40°C, 35% ~ 80% |
| Dimension |
255mm 370mm 100mm |
|
