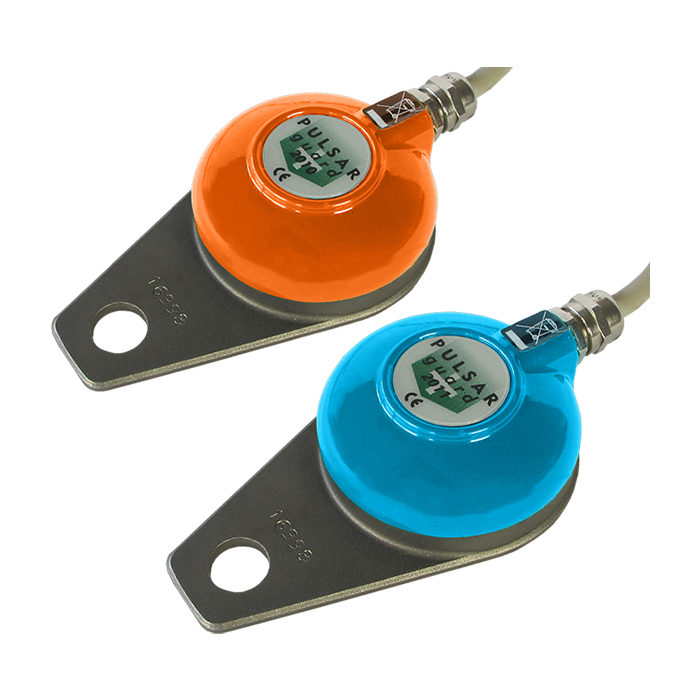

Pulsar measurement 2015 Acoustic Sensor (-40°C - 125°C (-40°F - 257°F))

High-temperature environments

Operating temperature: -40 °C to +125 °C (-40 °F to +257 °F)

Power supply: 23-30V DC

Detection Frequency: 100 to 600 kHz

Analog Output: 0-10 V DC

Cable: 4 m of 4 core shielded 24 AWG

Ingress Protection: IP68 (NEMA 4)

Sensor Mounting: Tab with 14 mm hole (0.55 in)

Construction: Cap and base housing in 316 stainless steel

Weight: 640 g (1.41 lb) (includes cable)

Size: 125 mm long (4.92 in)

Electrical Connection: 4 core screened value

CE Approval: See EC Declaration of Conformity in the manual
