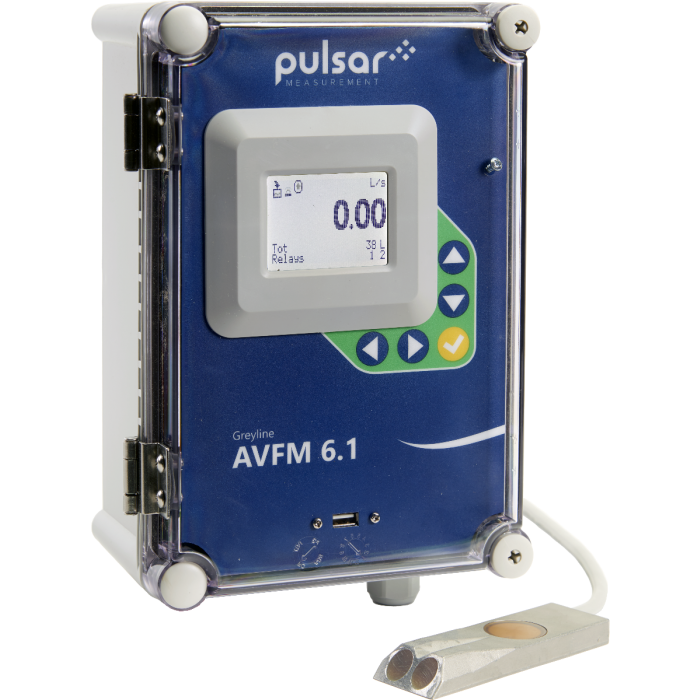

Pulsar measurement AVFM 6.1 Area-Velocity Flow Meter

Operating Parameters: Round pipe, rectangular, trapezoid, egg, or custom shapes

Programming: Built-in 5-key calibrator with English, French, or Spanish language selection

Electronics Enclosure: NEMA4X (IP66) polycarbonate with clear, shatterproof cover

Accuracy:

• Level: ±0.25% of reading or ±2.03 mm (0.08 in), whichever is greater. Repeatability & Linearity 0.1%.

• Velocity: ±2% of reading or ±0.012 m/s (0.04 ft/s), whichever is greater. Requires solids or bubbles minimum size

of 100 microns, minimum concentration 75 ppm. Repeatability & Linearity 0.5%

Display: White, back-lit matrix — displays flow rate, totalizer, relay states, operating mode, and calibration menu

Power Input: • 100-240 V AC 50/60 Hz, 10 V A maximum

• Optional: 9-32 V DC, 10 W maximum

Analog Output: 3 Isolated 4-20mA, 1 kΩ, (flow, level, and velocity) or 0-5 V DC by menu selection

Control Relays: 2 Relays, form ‘C’ dry contacts rated 5 A SPDT; programmable flow alarm and/or flow proportional pulse (sampler/

totalizer), flow and/or level alarm

Data logger: Programmable 26 million point data capacity, time and date stamped plus formatted flow reports including total,

average, minimum, maximum, and times of occurrence. Includes USB output to Flash Drives and Windows software.

Operating Temp.

(Electronics): -20°C to 60°C (-5°F to 140°F)

Approximate Shipping

Weight: 4.5 kg (10 lb)

Approvals: CE, CSA / UL / EN 61010-1
