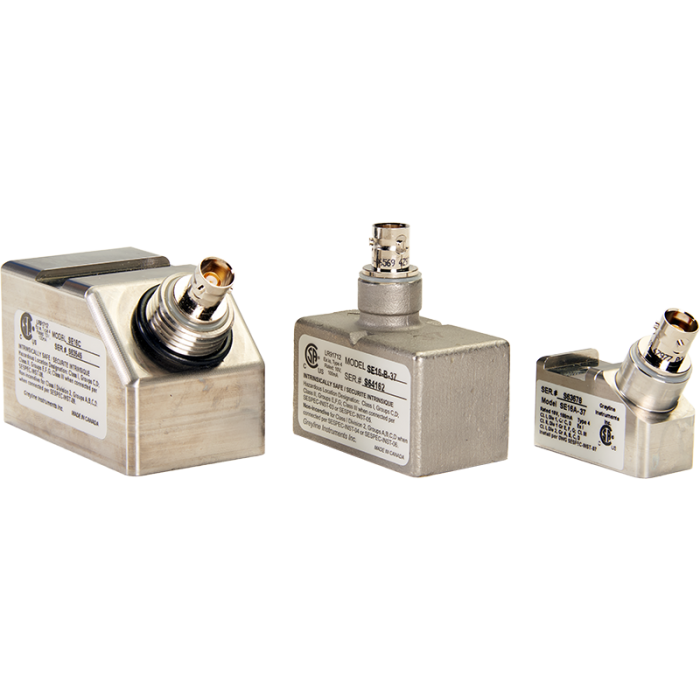

Pulsar measurement SE16B 传感器 (1.28 MHz/ 50 mm - 250 mm (2 in - 10 in))

Pipe Diameter, Nominal: Recommended for 50 mm to 250 mm (2 in to 10 in), Possible for up to 1,200 mm (48 in)

Pipe Materials: Any metal or plastic sonic conducting material including carbon steel, stainless steel, ductile iron, concrete-lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners including epoxy, rubber, and Teflon

Operating Frequency: 1.28 MHz

Operating Temperature: -40 °C to 150 °C (-40 °F to 300 °F)

Transducer Mounting Kit: Includes set of stainless steel transducer brackets, clamps, alignment bar, and coupling compound.

Transducer Cables: Triaxial, 7.6 m (25 ft) with BNC connectors and seal jackets (extendable up to 152.4 m (500 ft))

Ingress Protection: IP67 when seal jackets properly installed

Hazardous Locations:

Standard: Certified Non-incendive for Class I, Div 2, Groups A, B, C, D

Optional: Certified Intrinsically safe for Class I, Div 1, Groups C, D; Class II, Groups E, F, G; Class III; Encl. Type 4

Optional: Certified Intrinsically Safe for sensor mounting in ATEX/IECEx Zone  0, Ex ia IIB T4 Ga, hazardous locations
