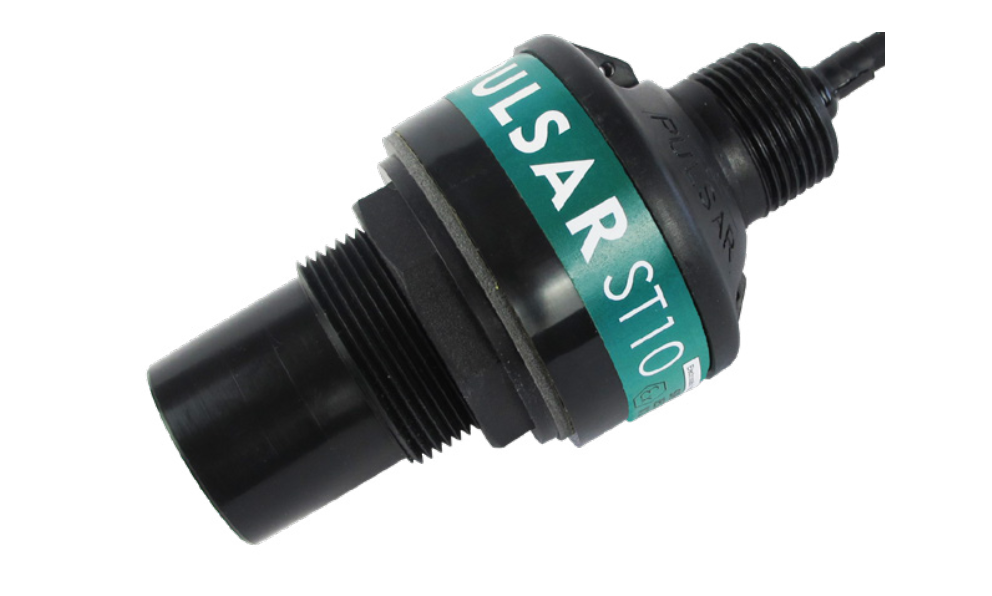

Pulsar measurement ST10 污泥传感器 (0.3 - 10 m (0.98 - 33 ft))

Dimensions: 78 (D) X 145 (H) mm (3.07 x 5.71in)

Diameter Face: 41 mm (1.61 in)

Weight: 1.1 kg (2.4 lb)

Measurement Range: 0.3 - 10 m (0.98 - 33 ft)

Frequency: 680 kHz

Beam Angle: <10°

Sensor Body Material: PVDF

Cable Lengths: Standard - 10 m (32.8 ft) Optional - Up to 500 m (1640 ft) maximum. Increments of 10m / 32.8 ft only

Max Separation: 500 m (1,640 ft)

Mounting Connection: 1” NPT or BSP

ENVIRONMENTAL

Enclosure Protection: IP68 / NEMA 6P

Min and Max Temperature (electronics): Hazardous Area: -40°C to +75°C (-40°F to +167°F)

APPROVALS: CE Approval: 2014/30/EU - EMC & 2014/34/EU ATEX Directives. Standards applied: EN 60079-0:2012+A11:2013 / EN 60079-18:2015 +A1:2017 / EN 61326-1:2013

Hazardous Area Approvals: Ex II 2 G Ex mb IIC T6 Gb / II 2 D Ex mb IIIC T85°C Db IS, S, IPA. Class I Div.1, Groups A,B,C,D, Class II Div.1, Groups E,F,G, Class III, Div.1.

PERFORMANCE

Accuracy: 0.25% or 6 mm (0.24 in) whichever is greater

Resolution: 0.01% or 2 mm (0.08 in) whichever is greater
