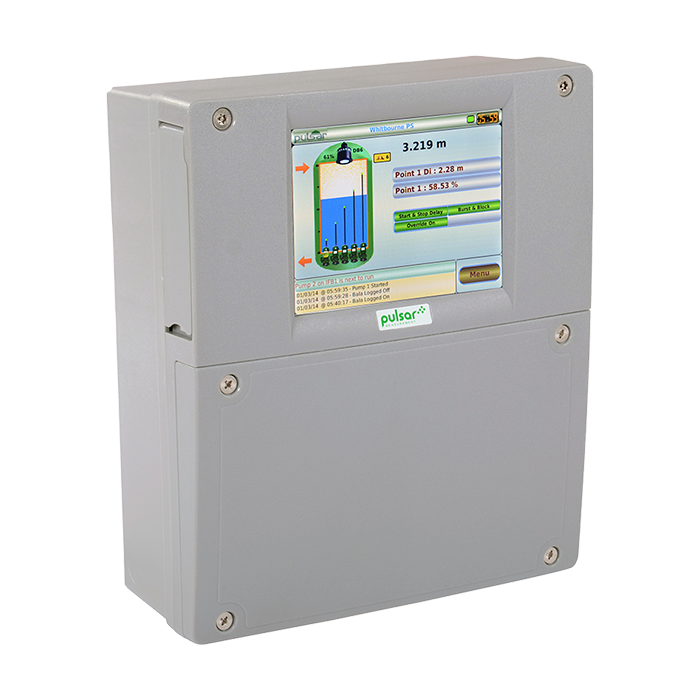

Pulsar measurement Ultimate Controller 泵控制器

Weight: Nominal 2 kg (4.4 lbs)

Cable entry detail: 11 total; 9 x M20 and 2 x M16 knockout underside

Connectivity: Mini USB (external), USB A Socket (internal), 'D' type 9 pin (internal), Camera Port (internal)

Protocol Supported: DNP3 Level 4, WITS Protocol 1.1 via Ethernet or mode (optional) Modbus RTU, TCP/IP (optional), Profibus V1 (optional), GSM/GPRS/PSTN, RS485 Pulsar expansion bus

Digital Inputs: 8 digital inputs, min input voltage 5 V DC, max input voltage, 30 V AC (max current 3 mA). 24 V DC input supply maximum total current 24 mA

Digtal Outputs: 8 form C (SPDT), rated at 5 A at 240 V AC
