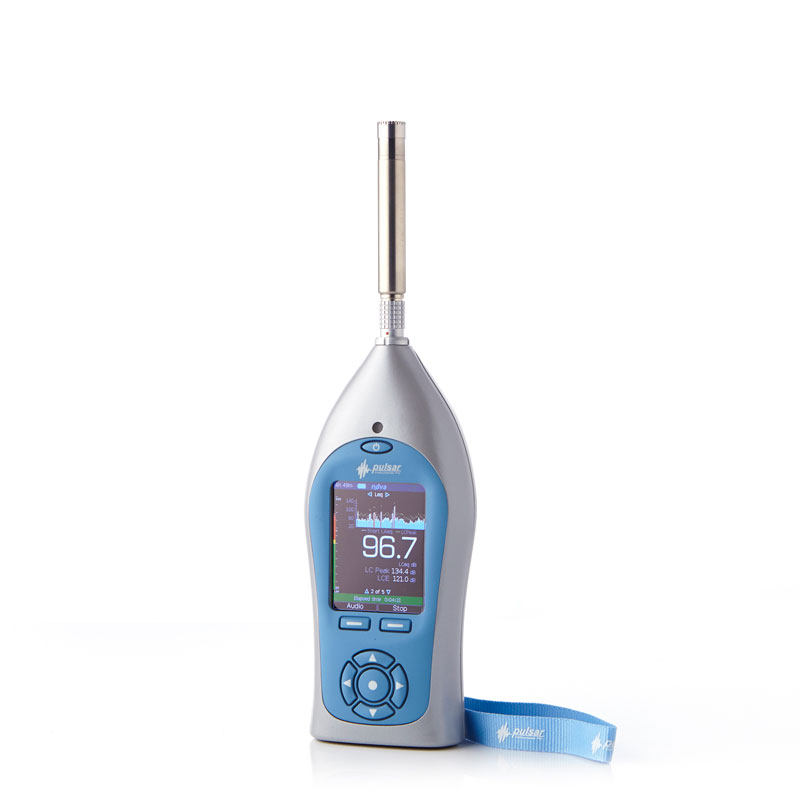

PULSAR 44 声级计

Class 2

Measurement Range: 20 – 140 dBA

Noise Floor Limit: 21 dBA (18 dBA for Class 1)

Peak Measurement: 143 dBC

Measurement function:

+ Lxy, Lxy Max, Lxy Min

+ Lxeq, LCPeak, LZPeak, LAPeak LCeq-LAeq, LxE, LAIe

IEC International Standards: IEC 61672-1 (Class 1 and Class 2) / IEC 60651:2001 (type 1 and 2) / IEC 60804:2000 (type 1 and 2)IEC61252:1993

Microphone Type: Class + PM1 pre-polarized

Frequency Weightings: RMS & Peak: A, C, Z all measured simultaneously

Time Weightings: F (Fast, 125ms), S (Slow, 1s) & I (Impulse, 0.35ms) all measured simultaneously

Memory: 4GB removable Compact Flash memory card

Display: High resolution anti-glare OLEd display with ambient light sensor & illuminated keypad

Frequency bands: 31.5Hz to 16kHz

Battery Type: 6x AA Alkaline batteries

Battery Life: typically > 30 hours

Dimensions: 280mm x 80mm x 42mm

Weight: 440 grams (without batteries)

External Connections: USB 2.0 Mini-B to PC / AC output via 3.5mm Stereo jack / AC & dC output via Multipin I/O socket

Accesories: User manual, Calibration certificate included in the price, AA Batteries (6), Wrist strap, AnalyzerPlus - Pulsar download analysis and reporting software, USB download cable

Detail

 Catalog



Standard features:



Model 43Class 1SPLA C Z (simultaneous measurement) frequency weighting
F S & I (simultaneous measurement) Time weighting
Leq/Peak (inc C-A Quick Integrator Settings)
Leq/Peak (inc C-A Quick Integrator Settings)
Pause & Back Erase
Pause & Back Erase
Model 44Class 2SPLA C Z (simultaneous measurement) frequency weighting
F S & I (simultaneous measurement) Time weighting
Leq/Peak (inc C-A Quick Integrator Settings)
Leq/Peak (inc C-A Quick Integrator Settings)
Pause & Back Erase
Pause & Back Erase

Option:

Input & Output Cables
PSR101 - Nova 1m Mini-B to Type A USB Cable
PSR171 - Nova power input cable, 2.1mm Power Jack, 2m
PSR174 - Nova AC & DC Output, 18 way to 2 x Phono, 1m
PSR176 - Nova 12v Battery pack cable 2m to tinned ends with inline fuse
PSR177 - Nova AC output cable, 3.5mm Mono to 3.5mm Stereo Jack, 2m
PSR185 - Nova AC output cable, 18 way to Phono, 1m
PSR190 - Nova power input cable, 2.1mm Power Jack & mains power supply

Options Ordering Codes
- Model 41 & Model 42

PSR0110 - Data Logging

PSR0111 - Manual audio record & Data
Logging
PSR0112 - Audio Note & Data Logging
PSR0113 - Repeat Timer & Data Logging
PSR012   - Single Timer
PSR013   - Leq/Peak & C-A
PSR014   - Pause / Back erase
PSR015  - TWA/ dose
PSR016  - Ln Values
PSR017  - Real Time 1:1 octave band fi  lters
