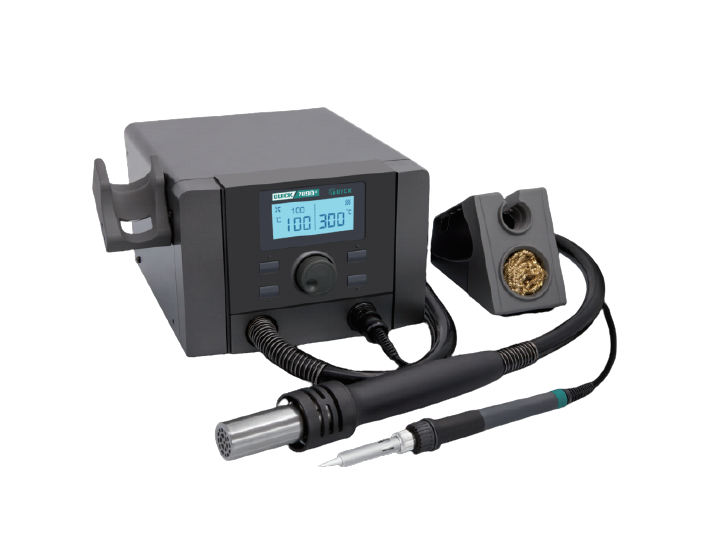

QUICK 709D+ 二合一返工系统 (1350W, 100~480°C)

Power: 1350W(Soldering station 70W)

Display type: LCD

Operating voltage: 220V AC

Temperature range (Soldering): 100~480°C

Temperature range (Hot air): 100~500°C

Temperature stability (Hot air): ±5°C (Stationary air, no load)

Temperature stability (Soldering): ±2°C (Stationary air, no load)

Airflow: 50L/min (Max)

Range of air volume: 1~100 Class

Ambient temperature: 0~40°C

Tip to ground potential: <2mV

Tip to ground resistance: <20Ω

Outer dimensions: 180x210x131mm

Weight: About 3.3 Kg
