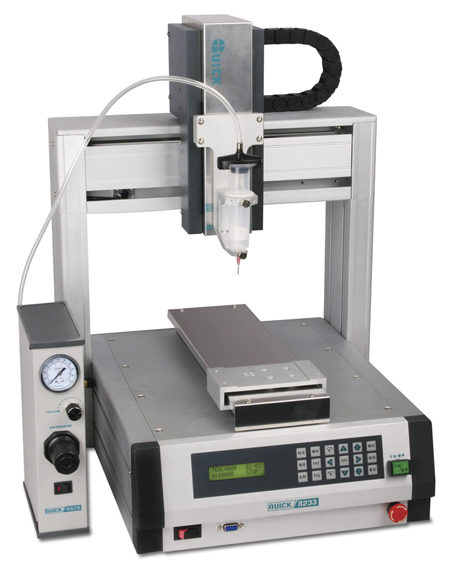

QUICK 8433 点胶机器人

Manufacturer: QUICK

Model: 8433

Origin: China

Warranty: 12 months


-Voltage: 100-240V AC

-Axis: 3

-Movement Range(mm):

X: 400

Y: 400

Z: 100

-Speed Range(mm/sec):

X: 0.1-600

Y: 0.1-600

Z: 0.1-300

-Repeat Accuracy(mm):

X, Y, Z: ±0.02

-Resolution(mm):

X, Y, Z: 0.01

-Loaded Weight(kg):

Worktable: 5

Head: 2

-Speed control: 3-Dimensional line, circular interpolation, smoothly

-Gluing Compensation: Glue feeding ahead or delay etc

-Demo File Capacity: ≤999, Max. 60000 points

-Processed File Capacity: ≤255

-Environmental Conditions:

Temperature(℃): 0-40

Humidity (%): 20-90(No Condensing)

-Size W×D×H(mm): 570×570×580

-Weight(kg): About 39 kg

Detail

Note

1. "D" means double soldering iron.

2. The movement range could be customized as per requirement.
