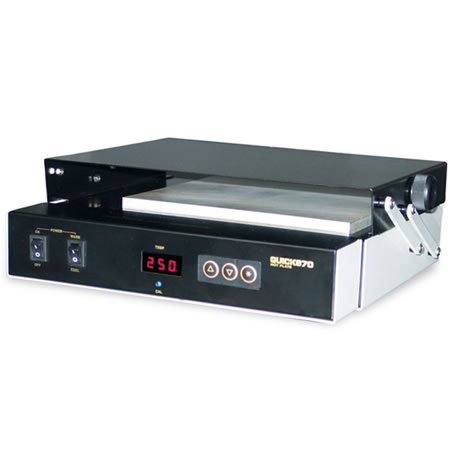

QUICK QUICK 870 预热台
制造商: QUICK Model: QUICK 870 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
power: 800W
Heating plate area: 130 × 130mm
Heating plate material: aluminum
Temperature Sensor: K type thermocouple
temperature range: 50 ° C ~ 300 ° C
Ambient temperature: 0 to 40 ° C
Temperature stability: ±2°C
Dimensions: 280(L) × 290(W) × 100(H)mm
weight: About 5.8kg
Features:
1. With a special heater, the panel surface temperature is evenly distributed.
2. The sensor is closed loop PID control, the temperature is accurate and stable.
3. Use two switches to control the power supply and heating separately. When not heating, the actual temperature on the preheating plate can also be displayed to avoid accidental burns.
4. It can be used for reflow soldering and preheating of some boards, and other processes that require uniform heating.
5. Anti-static design.
Datasheet
