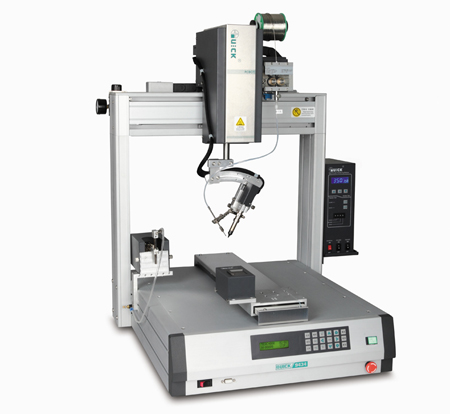

QUICK 9433 焊接机器人
制造商: QUICK Model: 9433 来源: China 保障: 12 Month - 报价要求
- 联系
Manufacturer: QUICK
Model: 9433
Origin: China
Warranty: 12 months
-Voltage: 100-240V AC
-Power(W): 150
-Temperature Range(℃): 50-500(as per working modes)
-Axis: 3
-Movement Range(mm):
X: 400
Y: 400
Z: 100
-Speed Range(mm/sec):
X: 0.1-600
Y: 0.1-600
Z: 0.1-200
-Repeat Accuracy(mm):
X, Y, Z: ±0.02
-Resolution(mm):
X, Y, Z: 0.01
-Loaded Weight(kg):
Worktable: 5
Head: 2
-Speed Control: Smoothly
-Demo File Capacity: ≤999, Max. 60000 points
-Processed File Capacity: ≤255
-Solder Wire Diameter(mm): 0.3, 0.5, 0.6, 0.8, 1.0, 1.2
-Environmental Conditions:
Temperature(℃): 0-40
Humidity (%): 20-90(No Condensing)
-Size W×D×H(mm): 570×570×580
-Weight(kg): About 42 kg
