Qyteco HD5806 工业内窥镜 (1280*720, 5V)

Camera Probe:

Camera Lens: CMOS

Resolution: 1280*720

Viewing Angle: 65°

Camera Focal Distance: 4CM

Depth of Field (DOF): 1.5CM~20CM

Front View Light Source: 6 LEDs for 1M Irradiation Distance

Side View Light Source: 1 big LED for 1M Irradiation Distance

Camera Probe Outer Diameter: 5.5MM

Insertion Length: 2M

Metal Part Length: 40MM

Waterproof Level: IP67 (Probe Only)

TFT Display:

Size (Active area): 5 inch

Resolution: 800*480

Luminance for LCM: 500

Image Zoom: 1~3 times (1.0X, 1.5X, 2.0X)

Image Flip: 180° flip


Image/Video Resolution: 1280*720

Signal Format: Digital

Image Format: .JPG

Video Format: .AVI

Internal memory: Micro SD card (support Max. 32G)

Power Supply:

Working Voltage: 5V

Working Current: 460mA

Li-battery Capacity: 3800mAh

Charging Hour: about 5 Hours

Work Time:

Continuous working time: about 5 Hours

Working Temperature:

Working Temperature: -10°~60°


Product Description

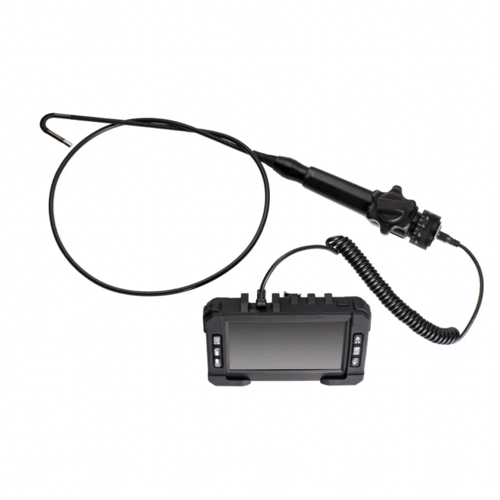

This product is designed with a front view camera as well as a side view camera, together on single camera probe, it is simple to switch the viewing direction by simply pressing a button to switch from 0 degree to 90 degree or vice versa to unveil the internal objects and/or structures with the illumination of the highlight LEDs, it is specially suitable for cavity wall inspection,sewer lines, HVAC ductwork, aircraft and automotive engines/cylinders inspection, and many more where a dual lens endoscope is required.

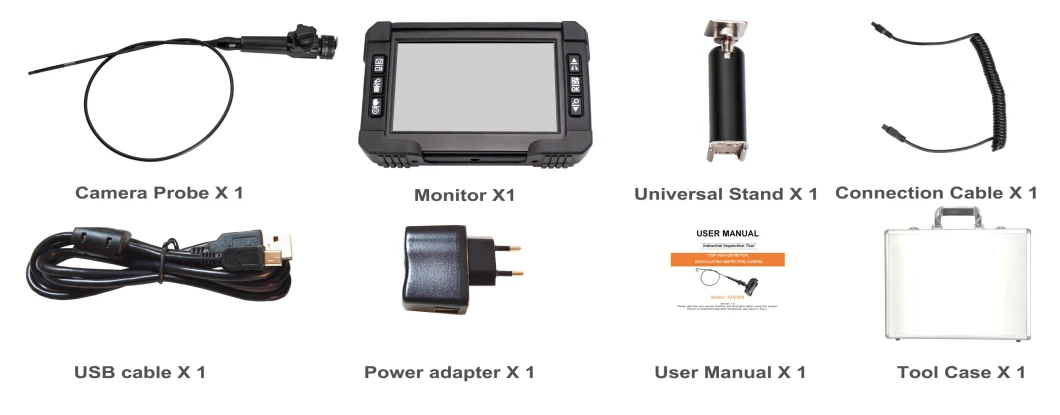

Handle Rotative Cable Multi-Angle Deflection Camera
