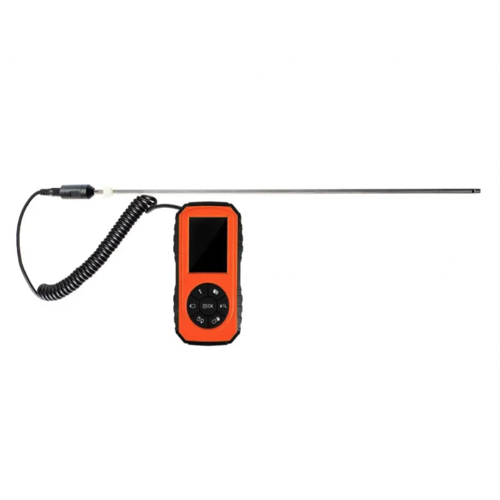

Qyteco QY20B 筒式内视镜 (1280*720, 2MM, 5.5MM)

Camera Probe:

Camera Lens: CMOS

Resolution: 1280*720

Viewing Angle: 35°

Camera Focal Distance: 2MM

Depth of Field (DOF): 0MM~5MM

Front View Light Source: 6 LEDs for 10MM Irradiation Distance

Side View Light Source: /

Camera Probe Outer Diameter: 5.5MM

Insertion Length: 60cm

Camera Part Length: 49MM

Waterproof Level: IP67 (Probe Only)

TFT Display:

Size (Active area): 5 inch

Resolution: 800*480

Luminance for LCM: 500

Image Zoom: 1~3 times (1.0X, 1.5X, 2.0X)

Image Flip: 180° flip


Image/Video Resolution: 1280*720

Signal Format: Digital

Image Format: .JPG

Video Format: .AVI

Internal Memory: Micro SD card (support Max. 32G)

Power Supply:

Working Voltage: 5V

Working Current: 460mA

Li-battery Capacity: 3800mAh

Charging Hour: about 5 Hours

Work Time:

Continuous working time: about 5 Hours

Working Temperature:

Working Temperature: -20°~45°



All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.


The barrel borescope with the mirror is specially for barrel inspection, it can be used to:

* Inspect new and used guns before purchasing

* Check that bore has been properly cleaned

* Check for wear on the bore

* Identify areas of fouling in the barrel

* Inspect barrels for defects

* Inspect insides of cases, lug recesses, etc.

Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
