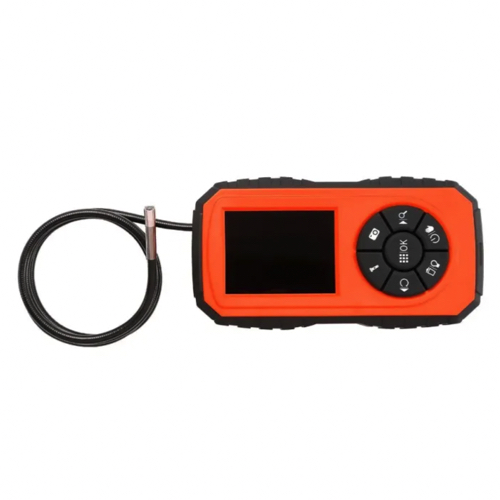

Qyteco V5555 高清视频示波器 (1280*720, 5V, 5.5MM)

Snake Tube Camera:

Camera Lens: SCMOS

Resolution: 1280*720

Viewing Angle: 65°

Focal Distance: 3.5CM

Depth of Field (DOF): 0.7CM-30CM

Light Source: 6 LEDs

LED Light Irradiation Distance: 30CM

Camera Outer Diameter: 5.5MM

Length of Metal Camera Part: 2.4CM

Video Output:

Temperature Detection Range: 0-80°

Working Current: 95MA

Working Voltage: 3.5V-5V

Working Temperature: 45°

Working Humidity: 5%-95%


TFT Display:

Size (Active area): 3 inch

Resolution: 640*480

Luminance for LCM: 400

Image Zoom: 1-4 times

Image Flip: 180° flip

Brightness Control:


Video:

Video Input/Output: 1280*720

Image/Video Resolution: 1280*720

Signal Format: Digital

Image Format: JPG

Video Format: AVI

Internal Memory: TF card


Power Supply:

Working Voltage: 6V

Working Current: 380MA

Internal Dry Battery: 4AA

Work Time: Continuous working time: 2 hours


Product Dimension (L*W*H): 160mm x 85mm x 35mm

Product Weight (Unit): 0.6kg

Details

Packing

All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.


APPLICATIONS

Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.



Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
