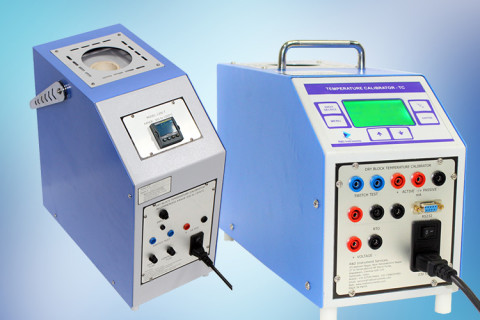

R&D Instrument Services NTC Negative Dry Block Temperature Calibrator (-35~123°C, 0.2°C)

Application

Ideal for calibration of thermocouples, RTD, gauges,

thermometers, switches, transmitters, etc.

Range : -35 from ambient to 123°C

Resolution : 0.1°C

Accuracy : ±0.4°C

Display Stability : ±0.1°C

Bath Stability : ±0.2°C

Stabilisation Time : 10 minutes

Units : °C/°F Switchable

Display : LED Green

Heating Time(ambient to 123°c) : 25 minutes (approx.)

Cooling Time(ambient to negative max.) : 30 minutes (approx.)

Switch Test Facility : Provided

Transmitter Power Supply : Provided

Block Diameter : 25.6 mm

Block Immersion : 120 mm

Insertion Tube Diameter : 25.4 mm

Insertion Tube Length : 120 mm

Insertion Tube Depth : 110 mm

Power Supply : 230V AC ±2.5/50 Hz.

Dimensions : 153 x 240 x 340 mm

Weight : 7 Kgs

Standard Delivery

- Instrument : 1 no.

- Power Cable : 1 no.

- Carrying Case : 1 no.

- Test Lead : 1 no.

- Insertion Tube : 1 x 1/4" + 1 x 1/2", 1 x 1/4" + 1 x 8.2 mm

- Insertion Tool : 1 no.

- Spare Fuse : 500 mA, 5A - 2 nos. each

- User Manual : 1 no.

- Traceable Calibration Certificate

Optional

- Insertion Tube (Multi Hole) : 1 X 1/4" + 1 X 10 mm: 2 X 1/4" + 2 X 5 mm

- Power Supply : 110V AC / 60 Hz.

- Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard
