R&D Instruments 650-TS Dry Block Temperature Calibrator (30~650°C, ±1.0°C)

Manufacturer: R&D Instrument Services
Model: 650 TS
Origin: India
Warranty: 12 months

Resolution: 0.1°C
Units: °C / °F Switchable
Display: LED Green & Orange
Power Supply: 230V AC ± 2.5% / 50 Hz, 1.6 KW or 115V AC± 2.5% / 60 Hz, 1.2 KW
Radial Uniformity: @50°C ± 0.05°C / @ 50°C ± 0.05°C
@650°C ± 0.1°C / @ 400°C ± 0.1°C
Immersion Diameter: 25.4 mm
Immersion Depth: 120 mm

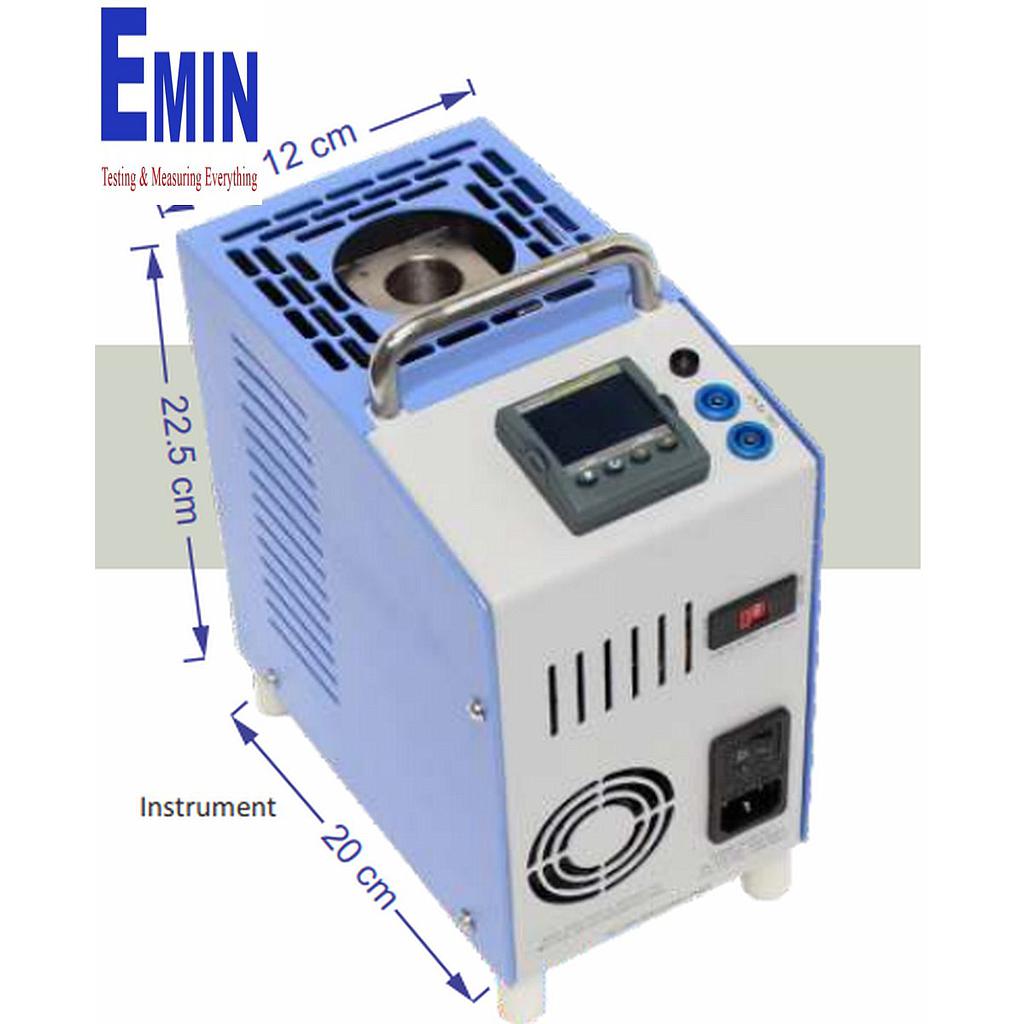

Dimensions with Bush: 120 x 200 x 225 mm (WxDxH)
Weight (Approx.): 5.8 kg (650 TS); 4.4 kg (400 TS)
Switch Test: Provided
Range : 30 to 650°C
Accuracy : ±1.0°C
Bath Stability : ±0.1°C
Stabilisation Time : 12 Min.
Heating Time(ambient to 650°c) : 12 minutes
Cooling Time(650 to 100°C) : 28 minutes
Standard Delivery
1. Instrument : 1 no.
2. Power Cable : 1 no.
3. Carrying Bag : 1 no.
4. Test Lead (2 wire) : 1 no.
5. Insertion Tube : Dual Hole - 1 x 1/4" + 1 x 12.5 mm,
Dual Hole - 1 x 1/4" + 1 x 8.2 mm
7. Spare Fuses : 8A, 15A - 2 nos. each
8. User Manual : 1 no.
9. Traceable Calibration Certificate
Optional
- Multi hole insertion tube: Custom built
- Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard
- Carrying Case
