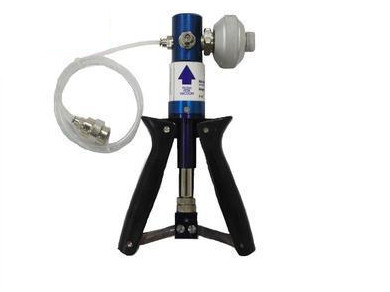

R&D Instrument HP 25 气动手动泵（25 Bar）

Manufacturer: R&D Instrument Services
Model: HP 2 5
Origin: India
Warranty: 12 months

Range:
Generation of Pressure: 25 Bar
Generation of Vacuum: 0.850 Bar
Medium: Dry Air
End Connection: ¼” BSP (F) Test & Master
Weight: 700 grams
Dimension: 235 mm (H) x 140 mm (W) x 65 mm (D)
Standard Delivery:
- 1 meter 4 mm Nylon hose with 1/4" BSP (F) adapter for
connecting the test instruments
- User Manual
- Test Certificate
Optional Accessories:
- Set of Bonded Seals 1/8” - 3 Nos.
- Set of Nylon Washers: 1/8”, 1/4”, 3/8”, 1/2” - each 5 nos.
- Set of Adaptors:
1/4” BSP (M) x 1/8” BSP (F), 1/8” NPT (F), 1/4” NPT (F),
3/8” BSP (F), 3/8” NPT (F), 1/2” BSP (F), 1/2” NPT (F) - 1 No. each
- Quick Coupling & Connector - 1 No.
