Power: 110V/220V, 50/60HZ
Dimension: (L)430 x (W)430 x (H)520
Weight: 36 kgs
PCB thickness range: 0.8-2.0mm

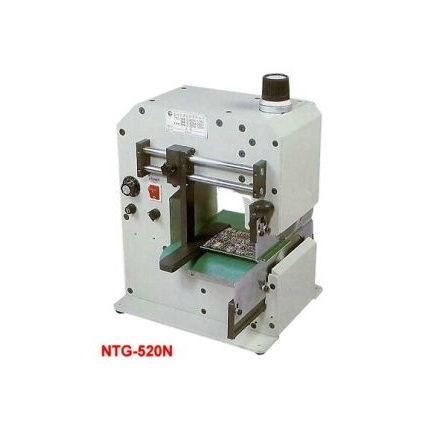

1. Separating the V-cut panel boards in the principle of non-bending stress.
2. The knives are adjustable both in axial and radial directions.
3. The round knives separate the board within the V-groove. Slightly adjust according to PCB thickness.
4. The depaneling maximum of PCB width is 160mm, the PCB length is unlimited.
