Volume (L x W x H):305 x 460 x 540m/m, Net Weight (Approx.):28Kg
• Power : 110/220V, 50/60HZ
• Consumption:1.2KW x 2, Solder Capacity:10Kg
• Flow Wave Motor:15W,Nozzle Size:( Customized and Changeable accessory)
• Operating Temp. (MAX.) 300oC
• Preheating Time Up To 300 Celsius Degrees: Approx. 20 min.
• Optional: Weekly timer

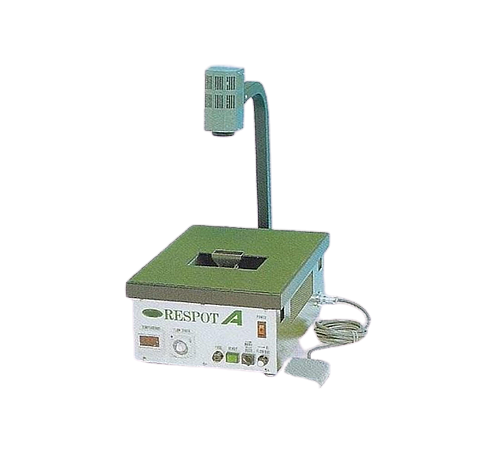

This Point-Soldering Machine, made of thick cast iron, is designed especially for high temp.
soldering up to 300 Celsius Degrees. It is suitable for soldering transformers, DE soldering for
through hole components, connector etc.
• The flow nozzle can be changed when a partial soldering or removing. There is no need to clean
away the dioxides during operation. Special flow nozzles can be made required.
• PID temperature controller with digital readout.
• Soldering flow timer with digital display.
• Available step switch.
• Changeable wave nozzle.
• Current leakage protection.
