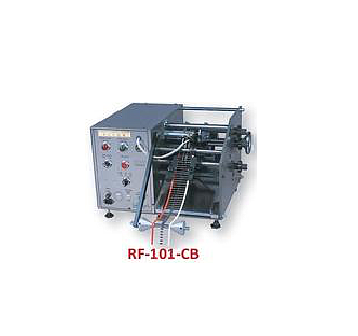

RenThang RF-101-CB 电阻成型机

  • 制造商: REN THANG
    Model: RF-101-CB
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Height: Fixed at 8mm or more

Lead Length: Adjustable

Punching height: 2 mm (Fixed)

Support point: 2 ~ 3mm

Pitch: A + 2C

Wire diameter: 0.4-1.3 mm

Power: 110/220 V AC. 60/50HZ

Dimension: 1050(L), 600(W), 650(H) mm

Weight: (N.W.) 115 Kgs. (G.W. ) 150 Kgs

Capability: Min. 6,6 00 pieces /Hour, Speed is adjustable

Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.


Chi tiết

FEATURES:

CB type, specilizes for TAPED parts, which are fed by Feeding GUIDES.

RF-101CB Kinking/ Punching die is equipped upon requested shape and specification as standard equipment. The various punching specification is available with customized die set, offering wide rage application.

Simply tell us "HOW TALL" the components will be above PCB. We can provide you the best preparation solution.

[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Heavy duty and Powerful construction- Sustainable lifespan.

OEM, DIP, PCBA Insertion line's most helpgul equipment!

Never damage lcomponent leads or components body.
