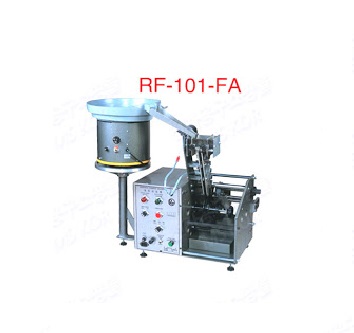

REN THANG RF-101-FA 电阻成型机(垂直型PK)

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Height: Min 5. Fixed at 5mm or more

Lead Length: Adjustable

Support Length: 25 Max

Pitch: 2.5mm

Wire diameter: 0.4-1.5 mm

Power: 110/220 V AC. 60/50HZ, upon your country.

Dimension: 1050(L), 600(W), 650 (H) mm

Weight: (N.W.) 100 Kgs. (G.W. ) 130 Kgs

Volume of Vibrant Bowl Feeder: 300~ 500 pieces at a time, depends on component's body.

Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.


Detail

FEATURES:

FA type, special for LOOSE parts, which are fed by VIBRANT BOWL FEEDER.

RF-101FA, forms and kinks leads into vertical U shape with kinks. Kinks can be any shape upon customer's request.

Tailored / Custome die is available for any forming specification. Welcome to email drawing for our best solution for you.

[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Ready-to-use setup - customers can use the machine right after receipt of it

Heavy duty and Powerful construction- Sustainable lifespan.

Please refer to PDF file in upper level for reference.
