Body length: 3.8 - 20 mm
Body diameter: 2.3-8 mm
Shoulder: 1.2 min
Height: Fixed at 8mm or more
Lead Length: Adjustable
Support point: 2 ~ 3mm
Pitch: A + 2C
Wire diameter: 0.4-1.3 mm
Power: 110/220 V AC. 60/50HZ
Size: 1050(L), 600(W), 650(H) mm
Weight: 115 kgs (N.W.) 175 kgs (G.W.)

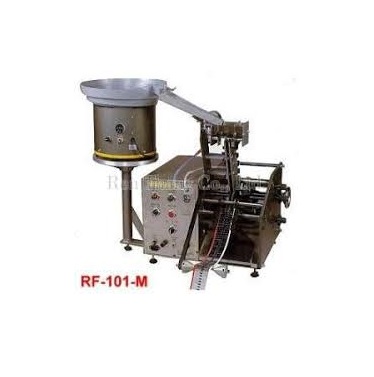

RF-101-M For both LOSSE and TAPE packed components.
Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.
Please review the attached PDF for reference.
RF-101M = (RF-101MA) + (RF-101MB). RF-101M is available for tape packed (MB model) and Loose in bulk (MA Model).
Powerful, heavy-duty Auto Axial Lead former/ cutter, with customized die set available for various forming specification.
Tailored / Custome die is available for any lead forming specification. Welcome to email drawing for our best solution for you.
[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.
Never damage lcomponent leads or components body.
RF-101M, Lead forming machine is suitable for mass production line.
Video Clip on Youtube: http://www.youtube.com/watch?v=djKv58fbd2E
