Power: AC 220 V 50 / 60HZ
Weight: 22 KGS
Air Source: 4 ~ 5 Kg / square cm
Feeder: 16 Sets
Material Box: 90 pieces
MAX. PCB Working Size: 250x300mm

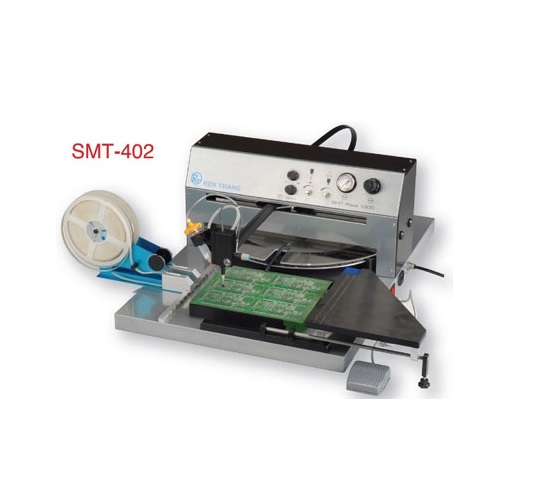

SMT-402 has the function to suck SMT component taping and spot glue on the PC board.
Operation with step pad switch to Spot glue SMT component rapidly.
The operation function could be separated or combined Sliding axial X and Y.
Suitable for sucking and taping small size SMT component Feeder frame could turn around 360 degree,
90 kinds of components could be operated. 16 sets SMT tape reel material could be loaded.
uitable for any reel size. Available for sample design, especially for changeable small quantity multi style production.
