Suitable frame:24"x24"(600 x 600mm)
Printing area:20"x22''(500 x560mm)
Length of squeegee:220mm
Size:840 x 920x250mm

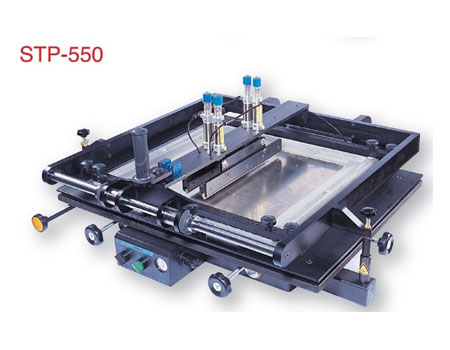

Special design printing machine for lead free and new style component.
When the stencil separate with PC board using vertical lift up function.
It could keep clean the surface of the PC board.
Suitable for fine pitch layout printing.
Flexible double Side board fixed base.Adjustable down ward pressure valve.
Button switch operation, Automatic control cylinder frame up and down, twin cylinder control metal squeegee.
Fix the press and angle. Printing direction from left to right. Single or double side PC board printing are available.
