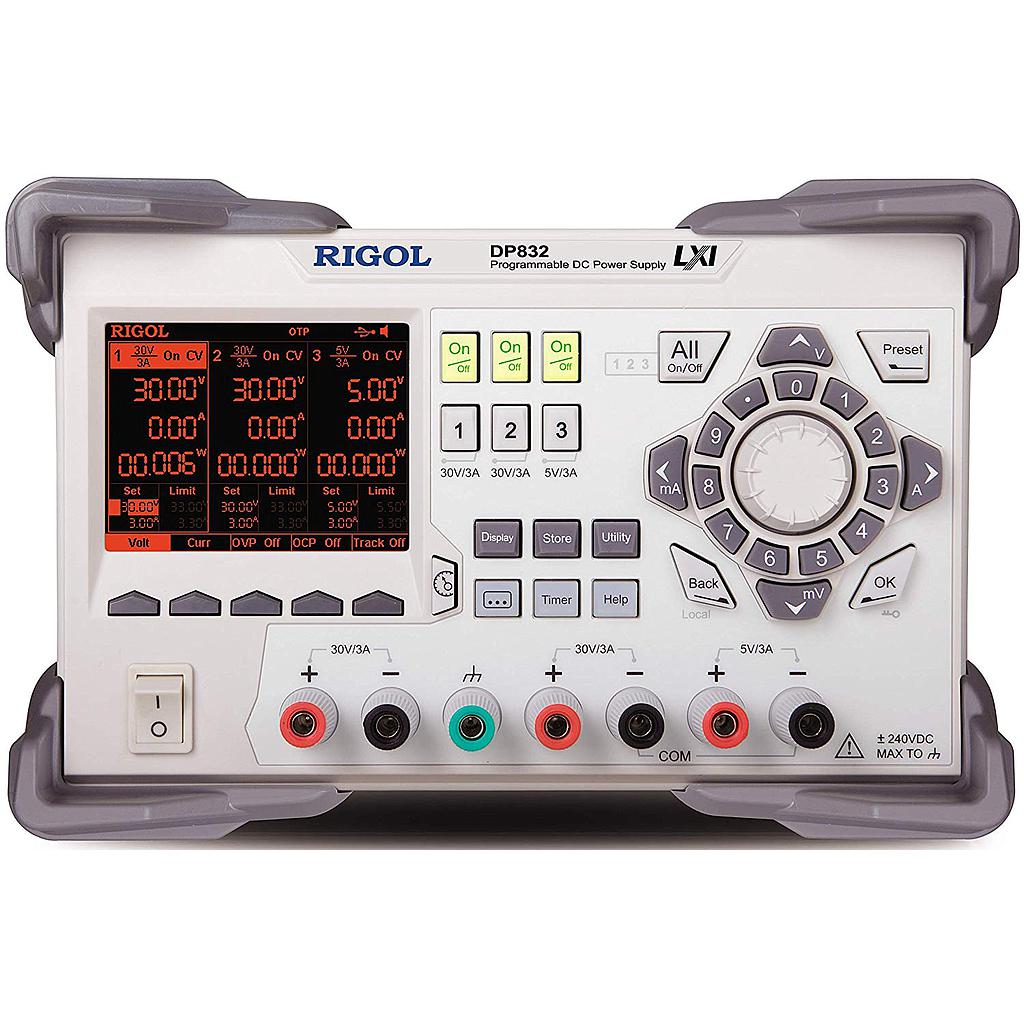

RIGOL DP832A 线性直流电源 (30V, 3A, 3 Channels)



Channel (Range): CH1, CH2, CH3

Output power: 195W

Range:

   CH 1: 0 to 30V/0 to 3A

   CH 2: 0 to 30V/0 to 3A

   CH 3: 0 to 5V/0 to 3A

Load Regulation Rate:

   Voltage: <0.01%+2mV

   Current: <0.01% + 250μA

Linear Regulation Rate:

   Voltage: <0.01%+2mV

   Current: <0.01% + 250μA

Ripples and Noise (20Hz to 20MHz)

  Voltage <350 vrms="" 2mvpp="" br="">   Current <2mArms

Accuracy:

  - Programming:

        + Voltage: 0.05%+20mV/ 0.05%+20mV/ 0.1%+5mV

        + Current: 0.2%+5mA/ 0.2%+5mA/ 0.2%+5mA

  - Readback:

        + Voltage: 0.05%+10mV/ 0.05%+10mV/ 0.1%+5mV

        + Current: 0.15%+5mA/ 0.15%+5mA/ 0.15%+5mA

Resolution:

  - Programming:

        + Voltage: 1/10mV

        + Current: 1mA

  - Readback:

        + Voltage: 0.1/1mV

        + Current: 0.1/1mA

  - Display: 1/10mV;  1/10mA

Interface: USB Device, USB Host, LAN, RS232, Digital IO

AC Power: 100Vac ± 10%, 115Vac ± 10%, 230Vac ± 10% (maximum 250Vac)

Power: 503VA

Weight: 10.3kg

Dimensions: 239mm(W) x 157mm(H) x 418mm(D)

Accessories: Cable power, Instruction manual.
