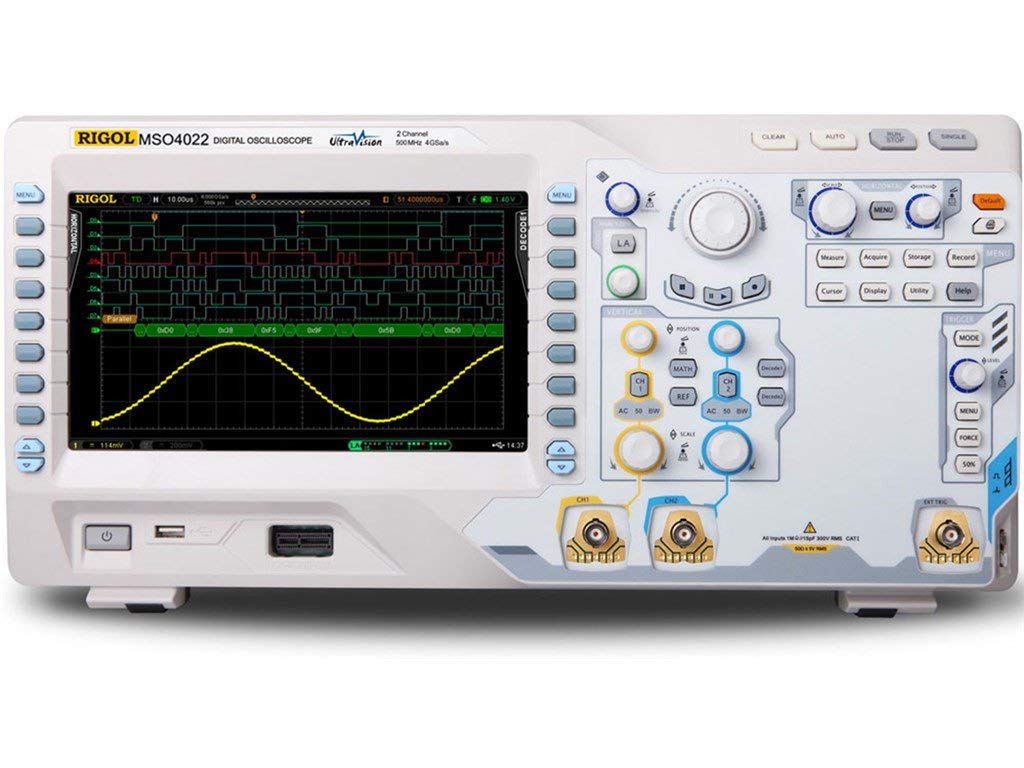

Rigol MSO4022 数字示波器(200MHz,2个模拟通道+16个数字通道)

  • 制造商: RIGOL
    Model: MSO4022
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Bandwidth : 200 MHz
2 Analog Channels + 16 digital channels
Vertical Sensitivity  : 1 mV/div - 10V/div
Real-time Sample Rate : 4GSa/s,digital channel 1G Sa/s
Memory Depth :      140Mpts,digital channel 28Mpts
Waveform Acquisition Rate :    110,000 wfms/s,digital channel 85,000wfms/s
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution :    8 bits
Math :    +, -, ×, FFT, customizable user defined
Cursor Measurements :     Manual, Track and Auto Measure modes
Output Voltage :    About 3 V, peak-peak
Frequency 2  :    1 kHz
Power Voltage  :    100-120 V/50Hz/60Hz/400Hz
100-240 V/50 Hz/60Hz
Power :    Maximum 120W
Fuse :    3 A, T Degree, 250 V
Temperature Range Operation: 0°Cto +50°C
Non-Operation: -20°C to +70°C
Cooling Method     :Fan
Humidity Range     : Under +35°C: °C90% Relative Humidity
+35°C to +50°C: ≤60% Relative Humidity
Altitude     Operation: under 3,000 meters
Non-Operation: under 15,000 meters
Dimensions :    Width×Hight×Depth =440.0
Origin : China
