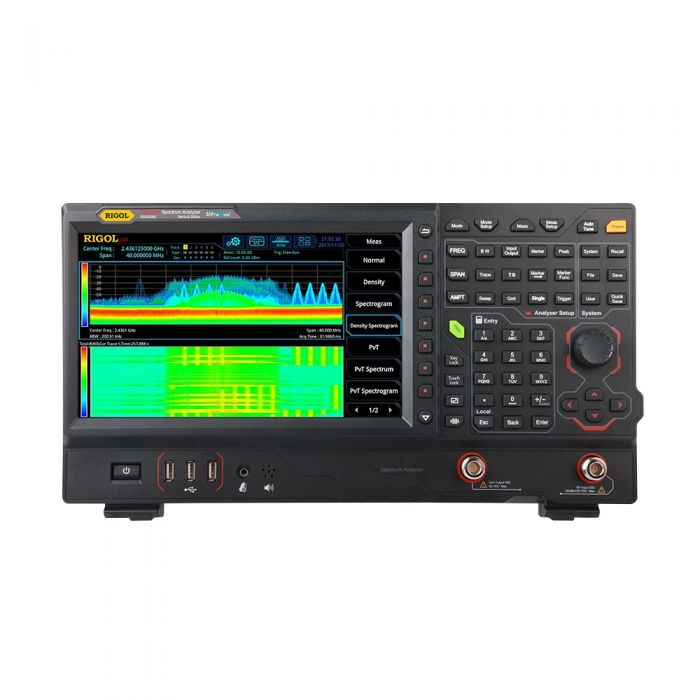

Rigol RSA5032 实时频谱分析仪(9kHz~3.2Ghz,实时25Mhz)

  • 制造商: RIGOL
    Model: RSA5032
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267






Frequency Range 9 kHz to 3.2 GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration accuracy]
Initial Calibration
Accuracy Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature Stability 0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate
Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency Readout Accuracy
Marker Frequency Resolution span/(number of sweep points - 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Frequency Counter
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Frequency Span
Range 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points - 1)
SSB Phase Noise
20℃ to 30℃,fc = 500 MHz
Carrier Offset
1 kHz <-95 dBc/Hz (typical)
10 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
100 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
1 MHz <-115 dBc/Hz, <-117 dBc/Hz (typical)
Amplitude
Measurement Range
Range
fc ≥ 10 MHz
DANL to +30 dBm
Maximum Safe Input Level[1]
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
Maximum Damage Level
CW RF Power +33 dBm (2 W)
Sweep Time span ≥ 10 Hz 1 ms to 4,000 s
zero span 1 μs to 6,000 s
eal-time Analysis Bandwidth
25 MHz
40 MHz (Option RSA5000-B40)
Min. Signal Duration for 100% POI at
the Full-Scale Accuracy
maximum span, default Kaiser window
7.45 μs
Trace Detector pos-peak, neg-peak, sample, average
Number of Traces 6
Window Type Hanning, Blackman-Harris, Rectangular, Flattop, Kaiser, and Gaussian
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1''
Color 24-bit color
Printer Supported
Protocol network printer
Mass Memory
Mass Memory Internal Storage 512 MB (nominal)
External Storage USB storage device (not supplied)
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
