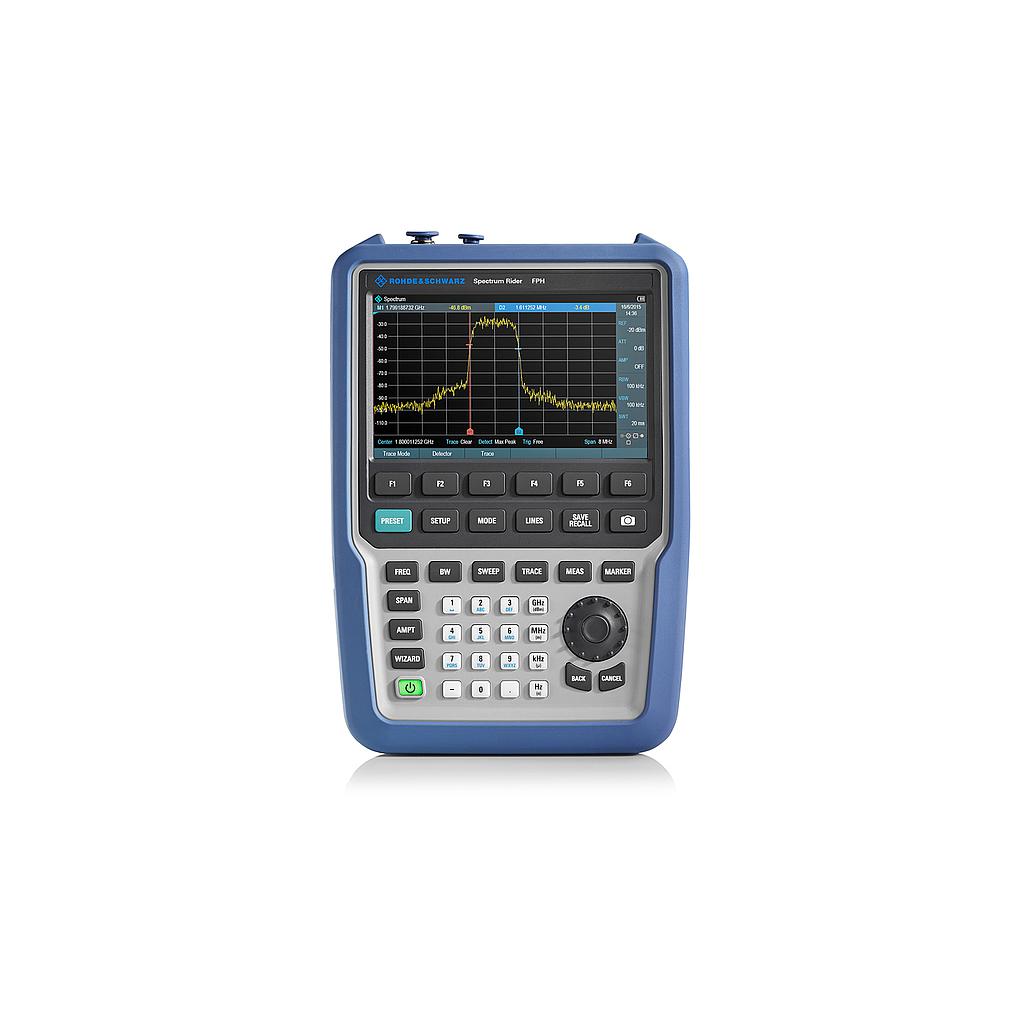

Rohde&Schwarz FPH 手持式频谱分析仪(5kHz~2GHz)(奥得编号1321.1111.02)

Manufacturer: Rohde&Schwarz

Model : FPH (1321.1111.02)

Warranty : 12 months


Frequency range: 5 kHz to 2 GHz

Resolution bandwidths: 1 Hz to 3 MHz

Phase Noise: < –88 dBc (1 Hz), typ. –95 dBc (1 Hz)

Level measurement uncertainty: up to 1.25dB, typ. 0.5 dB

DANL: -157 dBm, typ. -160 dBm

TOI: =7dBm (meas.)

Software upgradeable frequency ranges: Yes

Touch screen: yes

Backlit keypad: Yes

Fanless design: Yes

Display: WVGA, 800 × 480 pixel


Battery Capacity: 72 Wh

Dimensions (W × H × D): 202 mm × 294 mm × 76 mm

Weight: 2.5 kg


Scope of Delivery: Lithium-ion battery pack, Side strap for your hand, Power Cord, USB cable, User Manual
