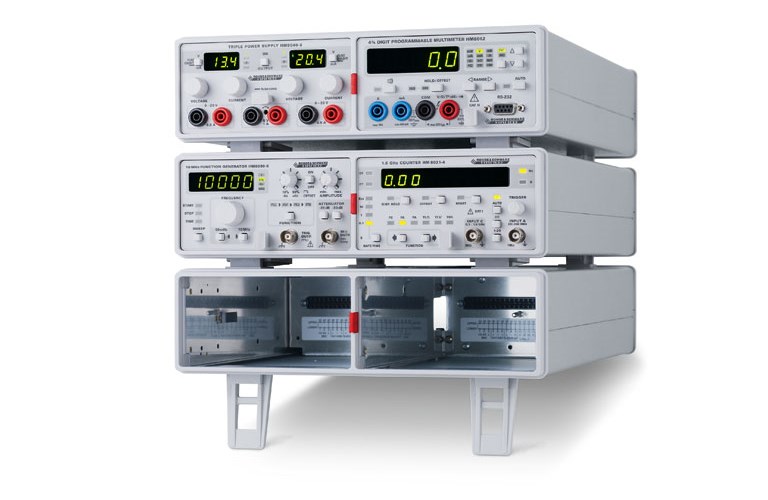

Rohde&Schwarz HM8001-2 模块化系统

Manufacturer: Rohde & Schwarz

Model: HM8001-2

Warranty: 12 months


Function generator: up to 10 MHz, up to 10 Vpp waveforms: sine, triangle, square wave, pulse, DC

Triple power supply: 2 x 0 V to 20 V/0.5 A,1 x 5 V/1 A

LCR meter

Measurement functions: L, C, R, Θ, Q, D, |Z|

Basic accuracy: 0.2 %

4¾-digit multimeter: 50 000 counts

Basic accuracy: 0.05 %


HM8030-6 function generator

- Frequency range: 50 mHz to 10 MHz

- Output voltage: up to 10 Vpp (into 50Ω)

- Waveforms: sine, triangle, square wave, pulse, DC

- Distortion: < 0.5 % up to 1 MHz, rise and fall time of typ. 15 ns

HM8040-3 triple power supply

- 2 x 0 V to 20 V/0.5 A; 1 x 5 V/1 A

- 3-digit switchable displays for current and voltage

- Display resolution: 0.1 V/1 mA

- Adjustable current limiting and electronic fuse

HM8018 LCR meter

- Measurement functions: L, C, R, Θ, Q/D, |Z|

- Basic accuracy: 0.2 %

- Meas. frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 25 kHz

- Max. resolution: 0.001 Ω, 0.001 pF, 0.01 µH

HM8012 4¾-digit multimeter

- 4¾-digit display with 50 000 counts

- Basic accuracy: 0.05 %

- Max. resolution: 10 µV, 0.01 dBm, 10 nA, 10 mΩ, 0.1 °C

- Offset function and relative value measurements


HM8001 mainframe

- Module supply voltages:

2 x 8 V (AC), max. 5.5 A each

2 x 5 V (DC), max. 1 A each

4 x 20 V (DC), max. 0.5 A each

- Power consumption per module: max. 25 W

- DC voltages electronically regulated, floating and short-circuit proof
