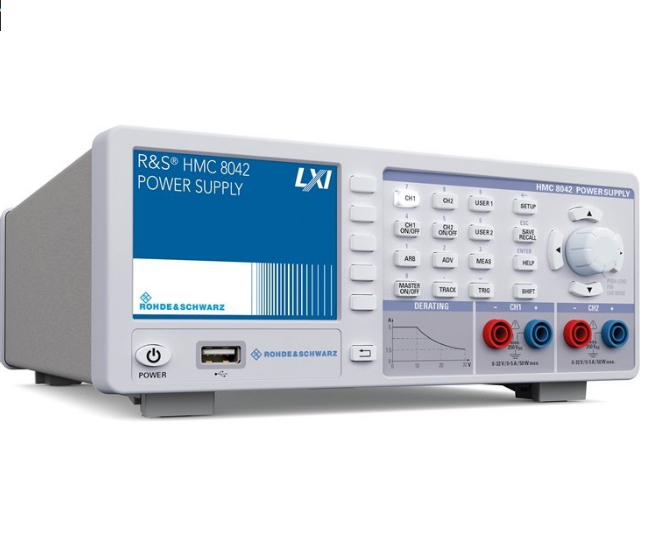

Rohde&Schwarz HMC8042 两通道电源(50W,2通道)

Number of output channels: 2

Total output power: 100 W

Maximum output power/CH: 50 W

Output voltage/CH: 0 V to 32 V

Output current/CH: 5 A

Resolution: 1 mV/ 1 mA

Line and load regulation : <0.03% + 5 mV, <0.03% + 300  µA

Setting accuracy: <0.05% + 2 mV, <0.2% +10 mA

Voltage Ripple: 1 mVrms / 5 mVpp, <1 mArms

Logging Sampling rate: 1000Sa/s,100Sa/s,10Sa/s, 1 to 3600Sa/s

Memory: Internal or USB

SENSE response: Yes

Communication: USB-TMC, USB-CDC and LXI, GPIB (Optional)

Mains nominal voltage: AC 115/230 V (±10%) 50/60 Hz

Display: 3.5", QVGA

Dimensions(W × H × D): 222 mm × 88 mm × 280 mm

Weight: 2.6 kg

Scope of Delivery: Power Cable, Manual
