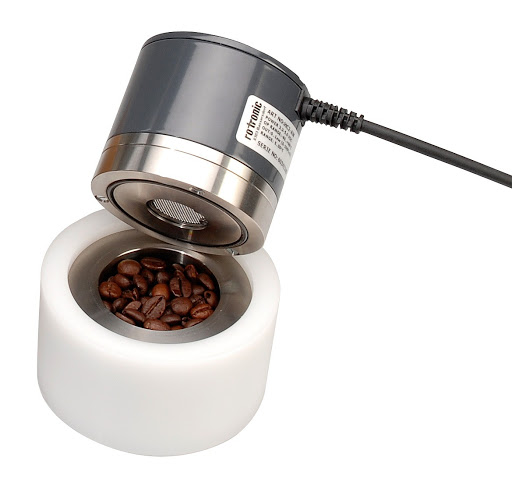

Rotronic HC2-AW AW 探头

Applications

For water activity measurements in bulk materials such as flour, grain, spices, etc. For solid and pasty products such as meat, sausage as well as oils, fats, etc.


Features:

• On/Off switch

• UART interface for direct connection to a PC

• Power supply via UART interface

• Adjusted at 23 °C and 10, 35, 80 %rh

•For use with HygroLab C1, HP23-AW-A


PROBE TYPE: Measurement probe with UART interface

FOR USE WITH: HygroLab C1, HP23-AW-A

RANGE OF APPLICATION: -40…85 °C (-40…185 °F) / 0…100 %RH

ACCURACY AT 23 ±5 °C: ± 0.008 aw / 0.8 %rh / ±0.1 K

POWER SUPPLY: Via display instruments

LONG-TERM STABILITY: <1 %rh / year

HUMIDITY SENSOR: HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B

TEMPERATURE DEPENDENCE: 0.001 K/K, 0.0002 aw/K

FILTER CARTRIDGE: Wire mesh filter with 20…25 μm pore size

RESPONSE TIME T 63: <20 sec.

PSYCHROMETRIC CALCULATIONS: Dew or frost point

START-UP TIME: 1,5 s

MEASUREMENT INTERVAL: 1 s

AW-QUICK MODE: Yes

COMMUNICATION INTERFACES: UART

MATERIAL: Stainless steel, aluminum

IP PROTECTION RATING: IP20

FDA / GAMP: FDA 21 CFR part 11 / GAMP5

CE / EMC CONFORM: EMC 2008/108/EG

DIMENSIONS: ø 68 x 60 mm
