Manufacturer: Rotronic

Model: HC2-AW-USB

Warranty: 6 months

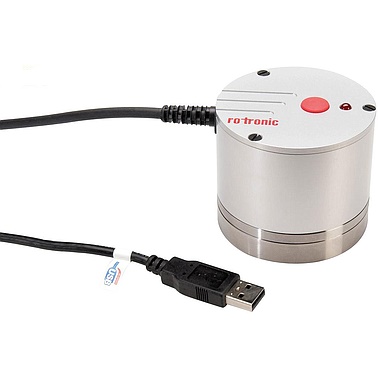

The station probe HC2-AW-USB offers new possibilities. The USB probe can be directly connected to a PC running HW4-P-QUICK-Vx software enabling water activity measurement capability. The HC2-AW-USB is the perfect device for a multi station application, as multiple probes can be attached to a single PC.


USB station probes: USB probes can be ordered as single probe or as a set including the HW4 software with Aw Quick function. The set offers all possibilities to measure water activity.


Features:

• Complete set of probe and HW4 including Aw Quick function available

• Measurement range: 0.00…1.00 Aw (0…100 %RH), -40…85 °C (-40..185 °F)

• USB interface for direct connection to a PC (HC2-AW-USB)


PROBE TYPE: Measurement probe with USB interface

FOR USE WITH: Software HW4

RANGE OF APPLICATION: -40…85 °C (-40…185 °F) / 0…100 %RH

ACCURACY AT 23 ±5 °C: ± 0.008 aw / 0.8 %rh / ±0.1 K

POWER SUPPLY: Via USB interface

LONG-TERM STABILITY: <1 %rh / year

HUMIDITY SENSOR: HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B

TEMPERATURE DEPENDENCE: 0.001 K/K, 0.0002 aw/K

FILTER TYPE: Wire mesh filter with 20…25 μm pore size

RESPONSE TIME T 63: <20 sec.

PSYCHROMETRIC CALCULATIONS: Dew or frost point

CONNECTION: Via USB to PC, 3 m cable

START-UP TIME: 1,5 s

MEASUREMENT INTERVAL: 1 s

COMMUNICATION INTERFACES: USB

MATERIAL: Stainless steel, aluminum

IP PROTECTION RATING: IP20

FDA / GAMP: FDA 21 CFR part 11 / GAMP5

CE / EMC CONFORM: EMC 2008/108/EG

DIMENSIONS: Ø 68 x 60 mm
