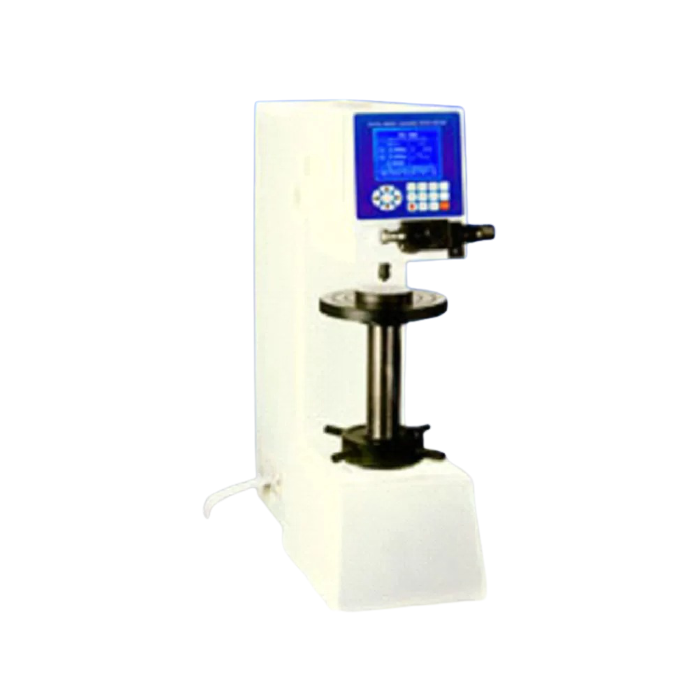

SADT HBS-3000 数字式布氏硬度计 ( 8~650HBW)

Test range: 8~650 HBW (hardmetals steel ball)

Scale: HBW2.5/62.5, HBW2.5/187.5,

HBW5/125, HBW5/250, HBW5/750,

HBW10/100, HBW10/1500,

HBW10/3000, HBW10/250,

HBW10/500, HBW10/1000

Brinell test force test: 62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N),

1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)

Minimum unit of measurement: 1μm

Test force dwell time: 0-60s

Magnification of microscope x: 20x for reading microscope

Micrometer resolution (mm): 0.00125

Max. height of specimens (mm): 280

Max. depth of specimens (mm): 160

Comunication interface: RS232/Parallel interface

Data output: Built-in printer, printable output- maximum, minimum, average, variance

Power: AC220V, 50-60Hz

Dimension (DxWxH) (mm): 565 x 245 x 786

Net weight (kg): 130
