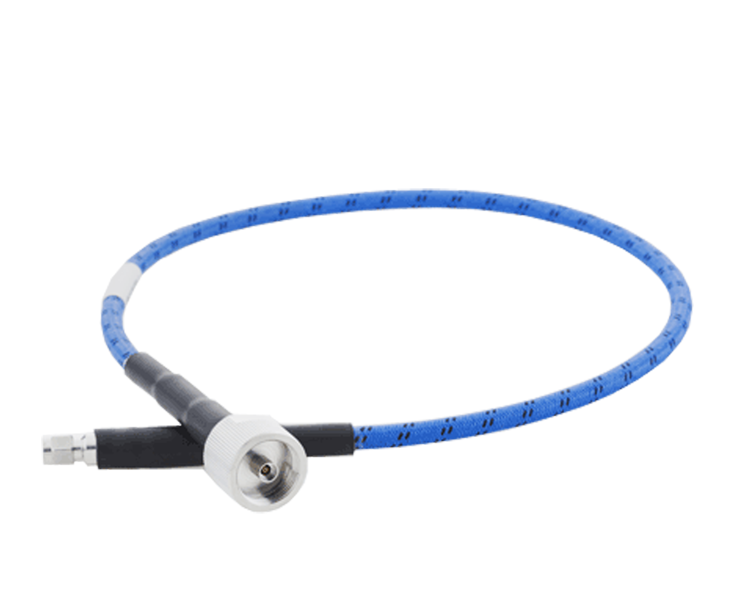

SALUKI ECAVNA50FF-(2.4/2.4) 经济型VNA测试电缆组件 (DC - 50GHz, NMD 2.4mm female to 2.4mm female connector)

Frequency Range: DC – 50 GHz

VNA End: NMD 2.4mm female

DUT End: 2.4mm female

VSWR: 1.35

Insertion Loss: < 2.65 dB

Phase Stability: < ±5.5°

Amplitude Stability: < ± 0.1 dB

Shielding Effectivity: > 100 dB

Cruch Resistance: > 80 kgf/cm

Length: 63 cm (24.8 inch)

Impedance: 50 Ω

Outer Diameter: 10.3 mm

Minimum Bend Radius: 50 mm

Connector Materials

   Body: Stainless steel, Passivated

   Center conductor: Au-plated beryllium Copper

Cable Materials

   Center conductor: Ag-plated copper

   Dielectric: PTFE

   Inner braid: Ag-plated copper tape

   Outer conductor: Ag-plated copper tape
