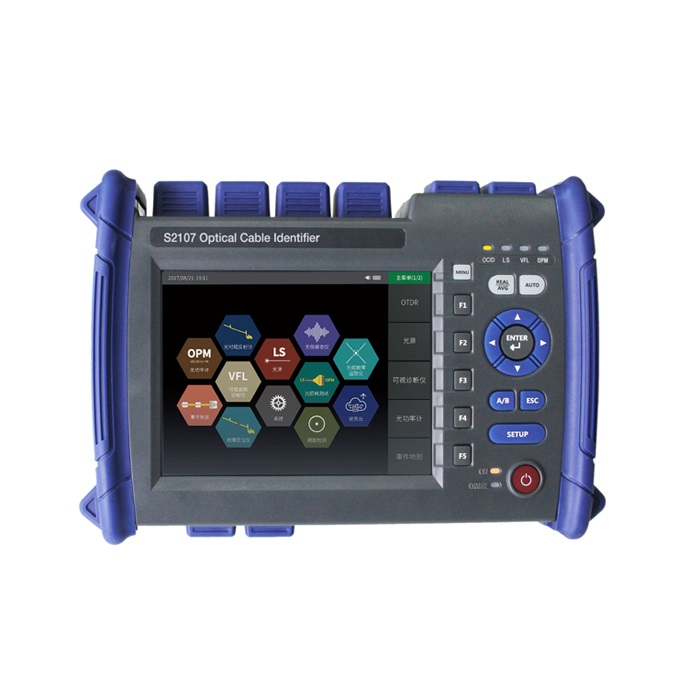

SALUKI S2107-AS1 光缆标识符设备 (1550nm ± 20nm)

1. OCID

Measurement Method: Single fiber testing (no loop)

Wavelength: 1550nm±20nm

Test Distance: 60km

Unidirectional Optical Cable Loss:14km

Initial Dead Zone: No dead zone

SNR: > 10dB

Fiber Type: SM (G.652)

Connector: APC (Interchangeable FC/SC/ST)

2. OTDR

Wavelength: 1550nm ± 20nm

Fiber Type: SM (G.652)

Max. Dynamic Range: 30dB

Event Dead Zone: 1m

Attenuation Dead Zone: 6m

Measurement Range: 0.5km/1km/2km/4km/8km/16km/32km/64km/128km/256km

Pulse Width: 3ns/5ns/10ns/50ns/80ns/160ns/320ns/500ns/800ns/1µs/3µs/5µs/8µs/10µs/20µs

Sampling Points: 16k – 128k

Sampling Resolution: 0.05m – 16m

Loss Accuracy: ± 0.05dB/dB

Reflection Accuracy: ± 3dB

Connector: FC/UPC (Interchangeable SC/ST)

File Format: SOR (standard format), PDF (analysis software)

3. OPM

Wavelength Range: 800nm – 1700nm

Measurement Range: -50dBm to +26dBm

Uncertainty: ± 5%

4. LS

Wavelength: Consistent with OTDR output wavelength

Output Power: ≥ -5dBm

Stability: CW, ±0.5dB/15min

5. VFL

Wavelength: 650nm ± 20nm

Output Power: ≥ 10mW

Mode: CW/ 1Hz/ 2Hz

Connector: FC/UPC (Interchangeable SC/ST)

Display: 5.6 inch color LCD touch screen, English interface

Data Storage: Internal: 100M (≤3000 curves), External: 4GB

Battery: 7.4V / 5000mAh Lithium battery

Power Supply: AC /DC Adapter 100V-240V, 50/60Hz, 0.6A

Weight: ≤ 1.5kg
