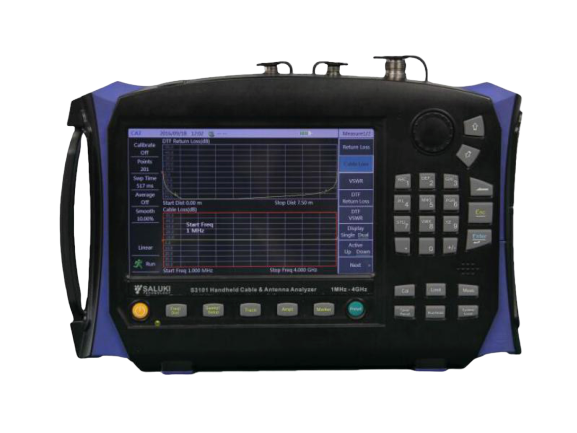

Saluki S3101B 电缆天线分析仪(1Mhz - 8GHz)

  • 制造商: SALUKI
    Model: S3101B
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Frequency Range 10 MHz - 8 GHz

Frequency Resolution 1kHz

Test Port N type (F)

10 Ref In/Ref Out BNC

GPS Antenna Port BNC

Data Storage USB, Mini USB, Mini SD

Network Port LAN RJ 45

Audio Out Headphone port

Output Power Range 0 to -30dBm

Return Loss Range -100 dB TO 100 dB

Return Loss Resolution 0.01

VSWR Range 1-65

VSWR Resolution 0.01

Cable Loss Range 0 – 30dB

Cable Loss Resolution 0.01 dB

Sweep Points 2-1001

Sweep Time (10k IF bandwidth) 1ms/point

Power Adaptor 110V/220V, 50Hz AC

Dimension (W x H x D) 295mm x 205mm x 70mm

Weight Approx. 2.5kg (with battery)
