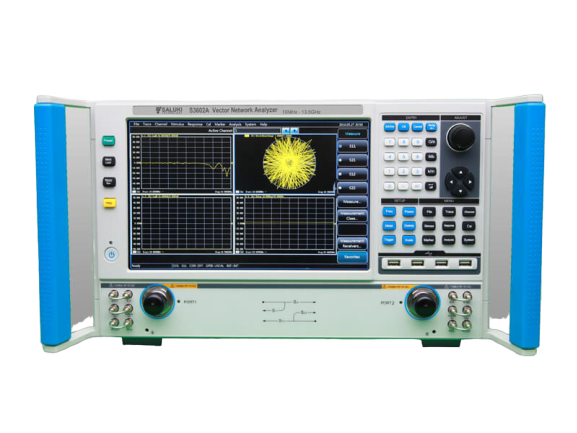

Saluki S3602C 矢量网络分析仪(10Mhz-43.5Ghz,2端口)

Frequency Range 10Mhz-43.5Ghz

Frequency Resolution 1Hz

Test Port N type (F)

Dynamic Range (@10GHz) 133 dB

Power Scan Range(@10GHz) 36 dB

Output Power(@10GHz) 10 dBm

Amplitude Trace Noise (@10GHz) 0.001 dBrms

Effective Directivity >42 dB

Dimension 463  x 279.5  x 690 mm

Weight 47 kg

interface PC 2.4 mm (M)

Impedance 50 Ω


Detail

Download datasheet
