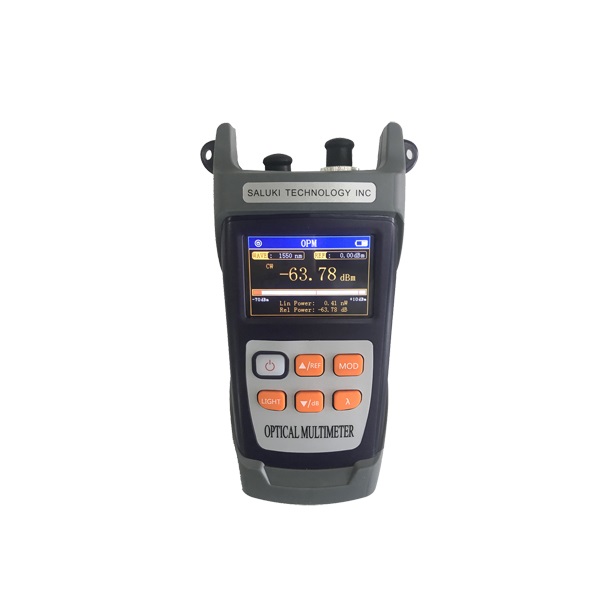

SALUKI SK300X-B1 智能光功率计 (-70dBm ~ +6dBm)

1. OPM

Wavelength Range: 800nm – 1700nm

Connector: Universal FC/SC/ST

Detector Type: InGaAs

Measurement Range: -70dBm to +6dBm

Uncertainty: ± 5%

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

Display Resolution:

Linear (mW): 0.1%

Logarithmic (dBm): 0.01dB

Frequency Detected: 270Hz/330Hz/1kHz/2kHz

2. LS

Wavelength: 1310/1550nm ± 20nm

Laser Type: FP-LD

Power: ≥-5dBm

Stability:± 0.05dB/30min

Mode: CW/270Hz/330Hz/1kHz/2kHz

Power Regulation: 0 – 6dB, step 1dB

Connector: FC/UPC

3. VFL

Wavelength: 650nm ± 30nm

Power: 10mW

Mode: CW/1Hz/2Hz

Connector: Universal FC/SC/ST

Power Supply: 2400mAh rechargeable lithium battery

Automatic Shutdown Time: 10 min

Continuous Working Time: ≥ 12h

Dimension: 100 (W) × 186 (H) × 50 (D) mm

Weight: 240g
