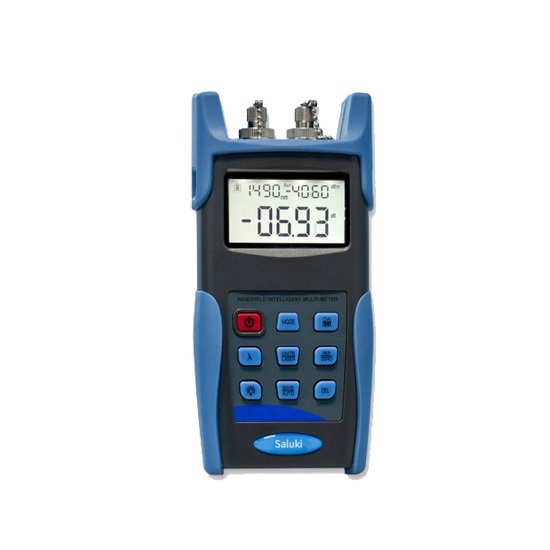

SALUKI SK329C 智能万用表 (-50dBm ~ +26dBm)

1. OPM

Wavelength Range: 800nm – 1700nm

Connector: FC/PC

Detector Type: InGaAs

Measurement Range: -50dBm to +26dBm

Uncertainty: ± 0.25dB

Calibration Wavelength: 850/1300/1310/1490/1550/1625 nm

Linearity: ≤ ± 0.1dB

Frequency ID Range: < 10kHz

2. LS

Wavelength: 1310/1550nm

Typical Output Power: ≥ -5dBm

Output Stability: ≤ 0.1dB (30min, 20℃)

Mode: CW/270Hz/1kHz/2kHz

3. VFL

Output Power : 10mW

Date Storage Capacity: 1000 data

Communication Port: Mini USB

Continuous Working Time

      ≥ 50h (Both OPM and LS are working)

      ≥ 200h (Only OPM is working)

Power Supply: Three AA batteries, 1.5V

Dimension: 90 (W) × 175 (H) × 44.5 (D) mm

Weight: 265g
