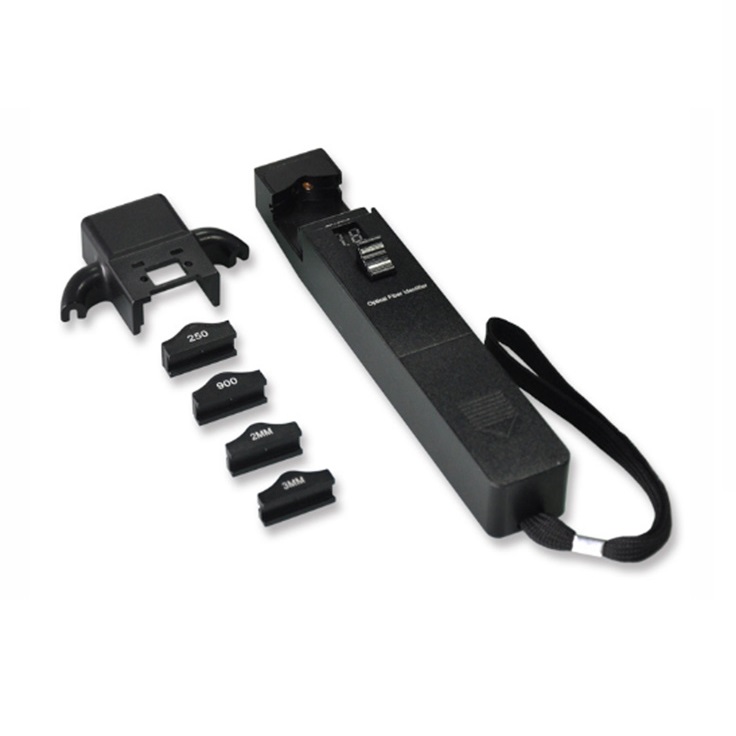

SALUKI SK330X 光纤标识符设备

Identified Wavelength: 800nm – 1700nm

Identified Signal Type: CW, 270Hz ± 5%, 1kHz ± 5%, 2kHz ± 5%

Detector Type: Ø1mm InGaAs 2pcs

Adapter Type

Ø0.25 (applicable for bare fiber)

Ø0.9 (applicable for Ø0.9 cable)

Ø2.0 (applicable for Ø2.0 cable)

Ø3.0 (applicable for Ø3.0 cable)

Signal Direction: Left & Right LED

Singe Direction Test Range

1310nm: -46dBm to +10dBm (CW/0.9mm bare fiber)

1550nm: -50dBm to +10dBm (CW/0.9mm bare fiber)

Signal Power Test Range: -50dBm to +10dBm (CW/0.9mm bare fiber)

Signal Frequency Display: 270Hz, 1kHz, 2kHz

Frequency Test Range

Ø0.9, Ø2.0, Ø3.0:

-30dBm to 0dBm (270Hz, 1kHz)

-25dBm to 0dBm (2kHz)

Ø0.25:

-25dBm to 0dBm (270Hz, 1kHz)

-20dBm to 0dBm (2kHz)

Insertion Loss

0.8dB (1310nm)

2.5dB (1550nm)

Alkaline Battery: 9V

Dimension: 30.5 (W) × 196 (H) × 27 (D) mm

Weight: 200g
