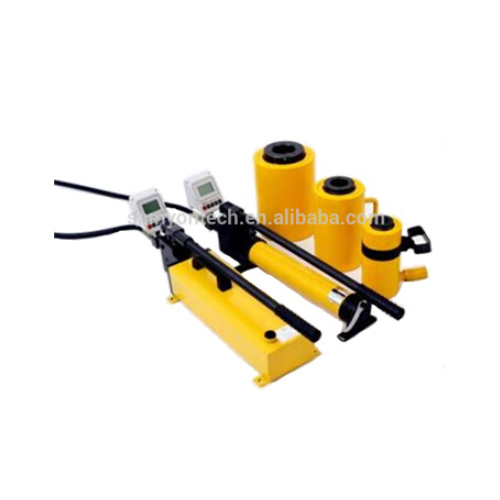

Samyon 20T 混凝土结构锚杆拉力试验机 (63Mpa)

Executive standard:

GB50367-2006 design code for strengthening concrete structure.


Description:

the instrument is suitable for testing the anchorage force of various of anchor shank,rebar and expansion bolts,also testing the pull force of glass block screen wall.


Specification:

Manual pump

+ pressure: 63Mpa

+ weight: 10kg

+ packing case weight: 6kg

Oil cylinder

+ capability: 200KN

+ tension stroke: 80mm

+ weight: 12kg

+ central hole: 34mm

Digital pressure gauge

+ measurement range: 0-200kn

+ power supply: 2pcs No.5 battery

+ weight: 0.34kg

Anchorage specifications(optional): φ6/8/10/12/14/16/18/20/22/25/28/32/36/38/40(optional)

Connector specifications(optional): M6/8/10/12/14/16/18/20/22/24/27/32/39(optional)

Tie rod: M24
