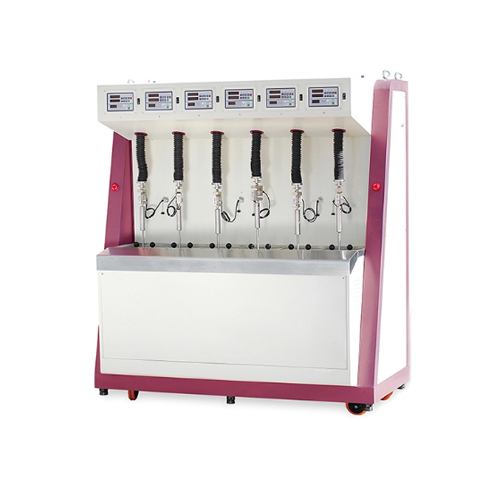

Samyon Fnct-2026 工程塑料测试设备 (20N~5000N)

Description

FNCT is used to determine the stress cracking resistance of polyethylene materials in any environment.A test specimen in the form of a square-section bar with coplanar notches in each face at the center,is subjected to astatic tensile load in a temperature-controlled environment,for example air,water,surfactant solution. The geometry of the specimen is such that plane strain conditions are obtained and brittle failure occurs under appropriate tensile load and temperature conditions.The time for this brittle failure to occur after loading is recorded.

Load Range: 20N~5000N

Load accuracy: ±1%(with self-calibration function)

Standard

ISO 16770 Full notch creep test ISO 899 Tensile creep (Optional) ISO 3501 Test of resistance to pull out of joins between polyethylene pressure pipes and fittings (Optional)

Parameter:

Number of stations: 3-6

Time accuracy:±1min

Force application: brushless servomotors,one for each station

Temperature controlling range: RT~95ºC(with cooling syetem); 50ºC~95ºC(without cooling system)

Force range:20-5000N, selectable independently

Temperature resolution:0.1ºC

Force resolution: 0.1N

Temperature error:±1ºC

Force accuracy:±1%

Thermal bath: stainless steel

Tensile travel: Max 200mm

Time range: up to 10000h

Displacement accuracy:±1mm

Time resolution:1s

Displacement resolution: 0.027mm

Sample dimensions: 100mm*10mm*10mm

                   100mm*10mm*4mm

                   90mm*6mm*6mm

Overall dimensions: L*W*H=(1620*730*1750)mm

Electrical supply: 380V, 50Hz, 15KW
