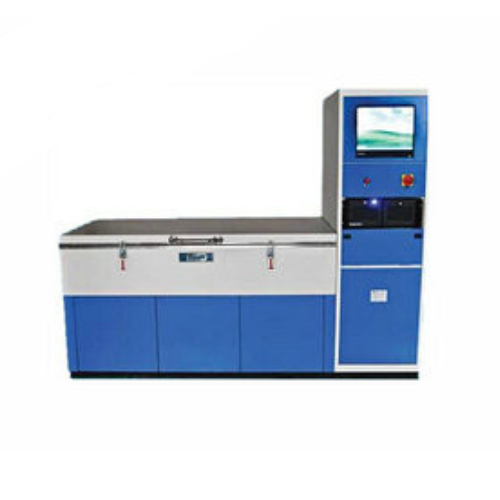

Samyon HDY-15 混凝土单侧盐冻机 (6 kw)

Purpose:

It is used for inspecting concrete frost resistance performance in the atmospheric environment and contact with salt or other corrosive medium in freeze-thaw cycle. Concrete durability is with strength, is one of the most important indicator.

Standard: GB/T50082-2009 and JG/T243-2009.

Technical Parameters：

Specimen containers： 250× 200×120mm ；

Temperature range：-2 5 ℃ ~+ 25 ℃ ；

Accuracy： high temperature：≤0.5K

low temperature ≤1k；

The maximum deviation from temperature：＜ 0.5K ；

Maximum ascending/descending temperature every hour：10℃；(adjustable)；

When running freezing and thawing the maximum temperature difference between each point shall not be more than 1 ℃；

Specimen can accommodate 15 specimen containers;

Power: 6 kW

Environmental conditions: 10 to 25 ℃ and maximum humidity of 60%
